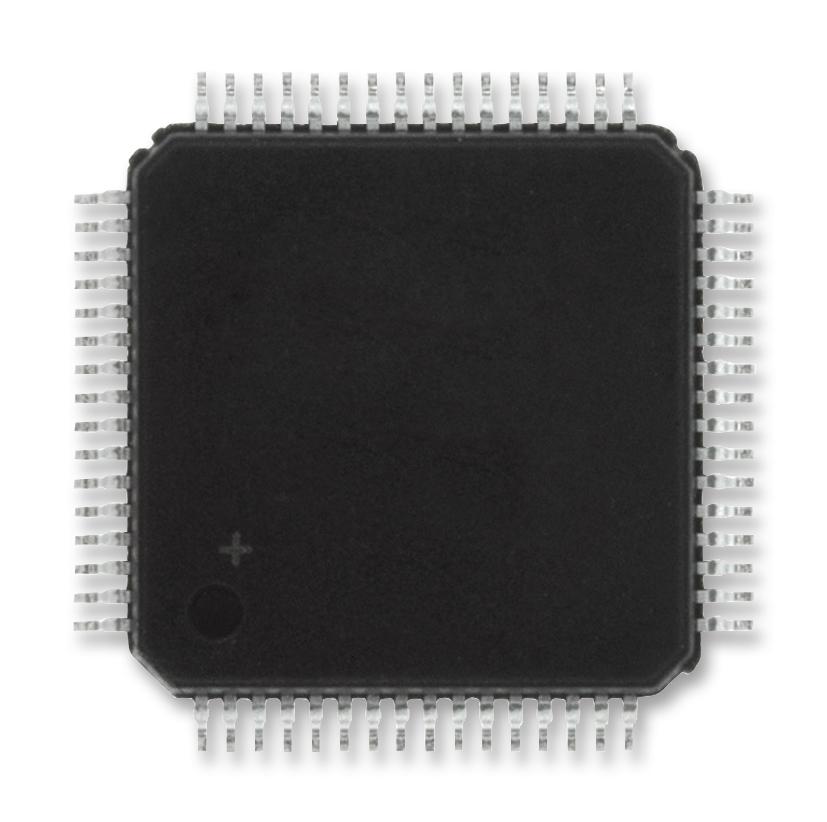

MICROCHIP DSPIC30F6012A-20E/PT Digital Signal Controller, dsPIC30F, 40 MHz, 144 KB, 52 I/O's, CAN, I2C, SPI, UART, 5.5 V

DSPIC30F6012A-20E/PT is a high-performance, 16-bit digital signal controller. The core has a 24bit instruction word. The program counter (PC) is 23-bits wide with the least significant bit (LSb) always clear. The working register array consists of 16 x 16-bit registers, each of which can act as data, address or offset registers. One working register (W15) operates as a software stack pointer for interrupts and calls. The dsPIC DSC devices feature a 16/16-bit signed fractional divide operation, as well as 32/16-bit and 16/16-bit signed and unsigned integer divide operations, in the form of single instruction iterative divides. The data accumulator consists of a 40-bit adder/subtracter with automatic sign extension logic. The round logic is a combinational block that performs a conventional (biased) or convergent (unbiased) round function during an accumulator write (store).

• Modified harvard architecture, C compiler optimized instruction set architecture
• 83 base instructions, 24bit wide instructions, 16-bit wide data path
• Dual data fetch, modulo and bit-reversed modes, single-cycle ±16 shift
• High-current sink/source I/O pins: 25mA/25mA, 16-bit capture input functions
• I2Câ�¢ module supports multi-host/server mode and 7-bit/10-bit addressing
• 12-bit analogue-to-digital converter (ADC) with 200Ksps conversion rate
• Enhanced flash program memory: 10,000 erase/write cycle for industrial temperature range 100K
• Self-reprogrammable under software control, power-on reset (POR), power-up timer (PWRT)
• Low-power, high-speed flash technology, low power consumption
• Wide operating voltage range (2.5V to 5.5V)
