| ₹ 23860.8 includes GST and import duties. | |
| B2B customers can avail ₹ 3638.77 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

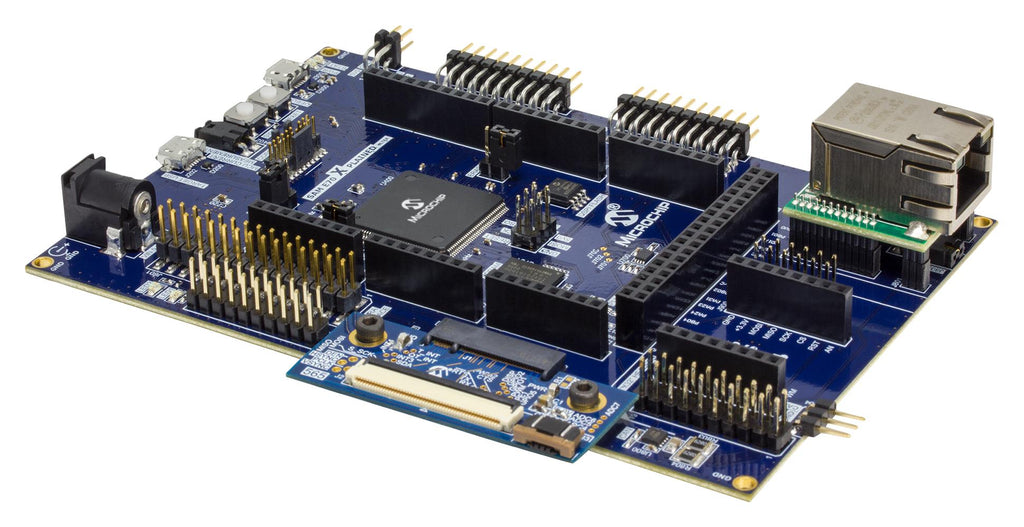

AM E70 Xplained ultra evaluation kit is a hardware platform for evaluating the ATSAME70 and ATSAMS70 families of microcontrollers (MCU). It is supported by our free-to-use MPLAB® Harmony v3-embedded software development framework, running in MPLAB® X Integrated Development Environment (IDE). The evaluation kit provide easy access to the features of the ATSAME70 and is a valuable assistant when integrating the device into a custom design.
- Cortex -M7 ATSAME70Q21B microcontroller
- 2048KB flash and 384KB RAM
- 32Mbit (4MB) QSPI, 16Mbit (2MB) external SDRAM and serial EEPROM w/MAC address
- Arduino mega interface
- Modular Ethernet interface (RMII + SPI)
- Modular graphics interface
- Image sensor interface headers (ISI), CAN interface, Micro SD card interface
- On-board debugger (EBDG + DGI interface)
- 5-14V input compatible
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer: Microchip |
| No. of Bits: 32bit |
| Silicon Family Name: SAM E |
| Core Architecture: ARM |
| Core Sub-Architecture: Cortex-M7 |
| Silicon Core Number: ATSAME70Q21 |
| Kit Contents: Xplained Ultra Development Board ATSAME70Q21, KSZ8061 Ethernet PHY, Graphics Card, User Guide |
| Product Range: - |
Other details
| Brand | MICROCHIP |
| Part Number | DM320113 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 23383.58 |
| 3-5 | ₹ 23144.98 |
| 5-10 | ₹ 22667.76 |
| 10+ | ₹ 22190.54 |
Bulk discount will be automatically applied during checkout based on quantity.
