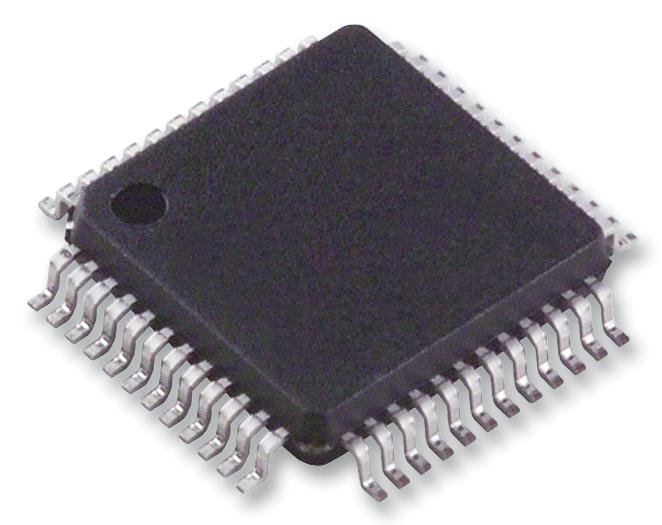

AVR64EA48-I/PT is a microcontroller of the AVR® EA Family using the AVR® CPU with hardware multiplier running at clock speeds up to 20MHz. It come with 64KB of flash, 6KB of SRAM, and 512bytes of EEPROM. The AVR® EA Family uses the latest technologies from Microchip with a flexible and low-power architecture, including event system, accurate analogue subsystems, and advanced digital peripherals.
- AVR® CPU, running at up to 20MHz, single-cycle I/O register access
- 64KB In-system-programmable flash memory with a true read-while-write operation
- Power-on Reset (POR) circuit, brown-out detector (BOD) with user-programmable levels
- High-precision internal oscillator with selectable frequency up to 20MHz (OSCHF)
- Single pin unified program and debug interface (UPDI)
- Three USARTs with fractional baud rate generator, auto-baud, and start-of-frame detection
- Event system for CPU-independent and predictable inter-peripheral signalling
- Watchdog timer (WDT) with window mode and separate on-chip oscillator
- 48-TQFP package, 1.8 to 5.5V supply voltage
- Temperature rating range from -40°C to +85°C
Product details
| Product Range:
AVR EA Family AVR64EA Series Microcontrollers
|
| Device Core:
AVR
|
| Operating Frequency Max:
20MHz
|
| Program Memory Size:
64KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
TQFN-EP
|
| No. of I/O's:
41I/O's
|
| Interfaces:
I2C, SPI, USART
|
| RAM Memory Size:
6KB
|
| ADC Channels:
28Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| Qualification:
-
|
Other details
| Brand |
MICROCHIP |
| Part Number |
AVR64EA48-I/PT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
