AVR64EA48-I/6LX is a microcontroller of the AVR® EA Family using the AVR® CPU with a hardware multiplier running at clock speeds up to 20MHz. This comes with 64KB of Flash, 6KB of SRAM, and 512bytes of EEPROM. The AVR® EA family uses the latest technologies from Microchip with a flexible and low-power architecture, including Event System, accurate analogue subsystems, and advanced digital peripherals.
- Single-cycle I/O register access, two-level interrupt controller
- Two-cycle hardware multiplier, supply voltage range from 1.8 to 5.5V
- Flash: 10,000 cycles, EEPROM: 100,000 cycles, data retention 40 years at 55°C
- Power-on reset (POR) circuit, clock failure detection (CFD)
- Brown-out detector (BOD) with user-programmable levels
- Voltage level monitor (VLM) with interrupt at a programmable level above the BOD level
- High-precision internal oscillator with selectable frequency up to 20MHz (OSCHF)
- Auto-tuning for improved internal oscillator accuracy
- Idle with all peripherals running for immediate wake-up

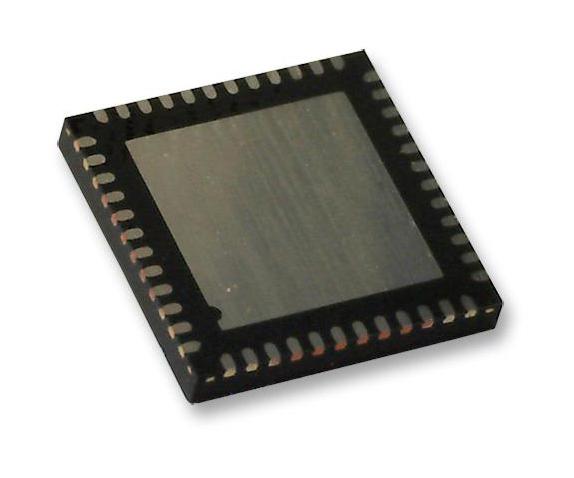

- 48pin count VQFN package, temperature range from -40°C to +85°C
Product details
| Product Range:
AVR EA Family AVR64EA Series Microcontrollers
|
| Device Core:
AVR
|
| Operating Frequency Max:
20MHz
|
| Program Memory Size:
64KB
|
| No. of Pins:
48Pins
|
| IC Case / Package:
VQFN-EP
|
| No. of I/O's:
41I/O's
|
| Interfaces:
I2C, TWI, SPI, USART
|
| RAM Memory Size:
6KB
|
| ADC Channels:
28Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
AVR EA
|
| MCU Series:
AVR64EA
|
| Qualification:
-
|
Other details
| Brand |
MICROCHIP |
| Part Number |
AVR64EA48-I/6LX |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
