AVR64DD28-I/STX is an AVR® DD family of microcontroller feature the well-known AVR® CPU, now running at up to 24MHz across the full supply voltage range of 1.8V to 5.5V. The AVR® DD family is designed to bring real-time control and multi-voltage operation to applications including industrial control, home appliance products, automotive, and Internet of Things (IoT). The family uses the latest core independent peripherals with low-power features and 5V operation for increased noise immunity. The Multi-Voltage I/O system allows safe bi-directional communication with systems running at a different voltage.
- High-performance AVR RISC CPU with hardware multiplier, running up to 24MHz
- External high-frequency oscillator, single cycle I/O access, two-level interrupt controller
- Configurable custom logic (CCL), single pin programming and debugging interface (UPDI)
- 12-bit differential analogue-to-digital converter (ADC), analogue comparator
- Zero-cross detector (ZCD), 10-bit digital-to-analogue converter (DAC) with output buffer
- Timer/counter type A (TCA), timer/counter type B (TCB), timer/counter type D (TCD)
- 64KB flash/8KB SRAM memory
- Power-on reset (POR), brown-out-detection (BOD), voltage level monitor (VLM)
- Cyclic redundancy check (CRC) scan, window watchdog timer with window mode (WWDT)

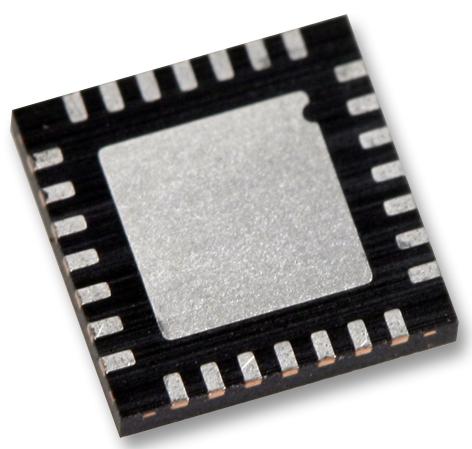

- 28-pin VQFN package, -40C to +85C temperature range
Product details
| Product Range:
AVR-DD Family AVR64DD Series Microcontrollers
|
| Device Core:
AVR
|
| Operating Frequency Max:
24MHz
|
| Program Memory Size:
64KB
|
| No. of Pins:
28Pins
|
| IC Case / Package:
VQFN-EP
|
| No. of I/O's:
22I/O's
|
| Interfaces:
I2C, SPI, USART
|
| RAM Memory Size:
8KB
|
| ADC Channels:
19Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.8V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
AVR-DD
|
| MCU Series:
AVR64DD
|
| Qualification:
-
|
Other details
| Brand |
MICROCHIP |
| Part Number |
AVR64DD28-I/STX |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
