Description

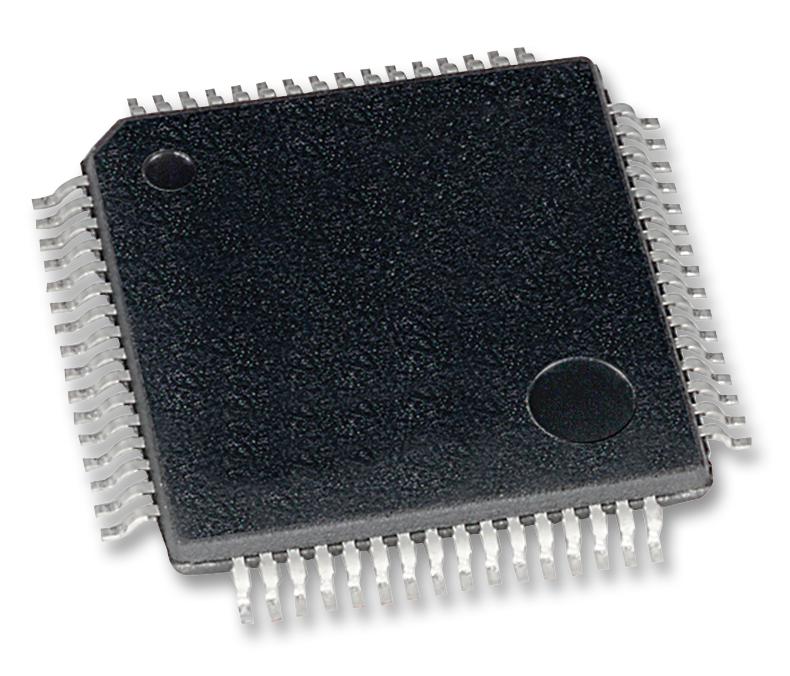

The ATXMEGA256A3U-AU is a high performance, low power 8/16bit AVR XMEGA A3U microcontroller in 64 pin TQFP package. This device achieves throughputs approaching 1MIPS per MHz by executing powerful instructions in a single clock cycle. This allows system designer to optimize power consumption versus processing speed. The device has seven 16bit timer/counters, 16bit real time counter (RTC) with separate oscillator, two sixteen channel, 12bit ADC, one two channel, 12bit DAC, four analogue comparators and programmable watchdog timer with separate on-chip ultra low power oscillator.
- Maximum operating frequency of 32MHz
- 256KB of in-system self programmable flash
- 4KB EEPROM and 16KB internal SRAM memory
- Operating voltage range from 1.6V to 3.6V
- 50 programmable I/O pins
- JTAG (IEEE 1149.1 compliant) and PDI (program and debug) interfaces
- QTouch library support
- 16bit real time counter (RTC) with separate oscillator
- USB 2.0, seven USART, two I2C and SMBus interfaces
- Operating temperature range from -40°C to 85°C
Applications
Embedded Design & Development, Industrial, Motor Drive & Control, Automation & Process Control, Communications & Networking, Metering, Consumer Electronics, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: AVR ATxmega Family ATXmega A Series Microcontrollers |
| Device Core: AVR |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 256KB |
| No. of Pins: 64Pins |
| IC Case / Package: TQFP |
| No. of I/O's: 50I/O's |
| Interfaces: I2C, SPI, UART, USB |
| RAM Memory Size: 16KB |
| ADC Channels: 16Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.6V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: AVR ATxmega |
| MCU Series: ATxmega A |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | ATXMEGA256A3U-AU |
| Quantity | Each |
| Technical Data Sheet EN |  |
