Description
The ATXMEGA192A3U-AU is a 8-bit low power high performance AVR Microcontroller features 192kB self-programming flash program memory, 8kB boot code section, 16kB SRAM, 2048B EEPROM, 4-channel DMA controller, 8-channel event system and up to 32 MIPS throughput at 32MHz. The device can be used in a wide range of applications, such as building, climate control, hand-held battery applications, power tools. Four internal inputs include internal temperature sensor, DAC output, AVCC voltage divided by 10 and 1.1V bandgap voltage.
- Two analogue to digital converters (ADCs)
- 12-bit Resolution
- Up to two million samples per second - Four inputs can be sampled within 1.5µs
- Differential and single-ended input - Up to 16 single-ended inputs
- Built-in differential gain stage
- Single, continuous and scan conversion options
- Four conversion channels with individual input control and result registers
- Internal and external reference options
- Compare function for accurate monitoring of user defined thresholds
- Optional event triggered conversion for accurate timing
- Optional DMA transfer of conversion results
- Optional interrupt/event on compare result
Applications
Industrial, Motor Drive & Control, Power Management, Automation & Process Control, HVAC, Communications & Networking, Metering, Consumer Electronics, Fibre Optics, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: AVR ATxmega Family ATXmega A Series Microcontrollers |
| Device Core: AVR |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 192KB |
| No. of Pins: 64Pins |

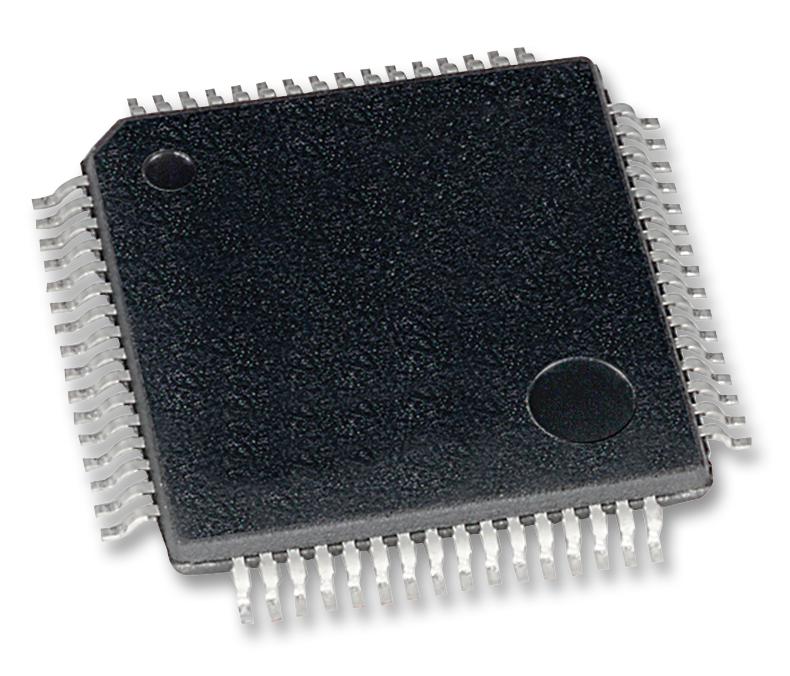

| IC Case / Package: TQFP |
| No. of I/O's: 50I/O's |
| Interfaces: I2C, SPI, UART, USB |
| RAM Memory Size: 16KB |
| ADC Channels: 16Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.6V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: AVR ATxmega |
| MCU Series: ATxmega A |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | ATXMEGA192A3U-AU |
| Quantity | Each |
| Technical Data Sheet EN |  |
