Description

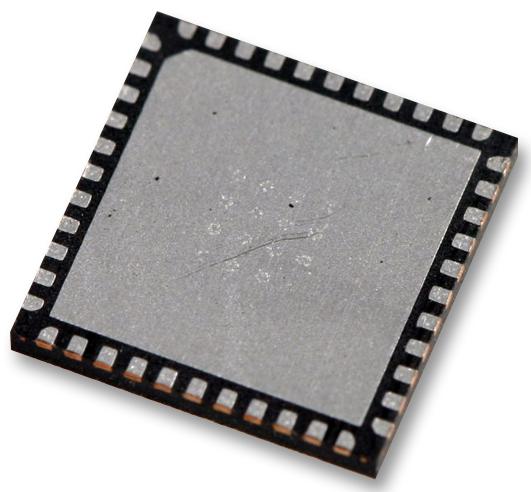

The ATXMEGA16A4U-MH is a 8-bit low power high performance AVR Microcontroller features 16kB self-programming flash program memory, 4kB boot code section, 2kB SRAM, 1024B EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system and up to 32 MIPS throughput at 32MHz. The device can be used in a wide range of applications, such as building, board, climate control, hand-held battery applications.
- Non-volatile program and data memories
- Peripheral features - Four-channel DMA controller, eight-channel event system
- Power-on reset (POR) and programmable brown-out detection
- Internal and external clock options with PLL and prescaler
- Programmable multilevel interrupt controller
- Five sleep modes
- Programming and debug interfaces
- PDI (Program and Debug Interface)
Applications
Industrial, Motor Drive & Control, Automation & Process Control, HVAC, Communications & Networking, Metering, Consumer Electronics, Fibre Optics, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: AVR ATxmega Family ATXmega A Series Microcontrollers |
| Device Core: AVR |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 16KB |
| No. of Pins: 44Pins |
| IC Case / Package: QFN |
| No. of I/O's: 34I/O's |
| Interfaces: SPI |
| RAM Memory Size: 2KB |
| ADC Channels: 12Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.6V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: AVR ATxmega |
| MCU Series: ATxmega A |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | ATXMEGA16A4U-MH |
| Quantity | Each |
| Technical Data Sheet EN |  |
