Description

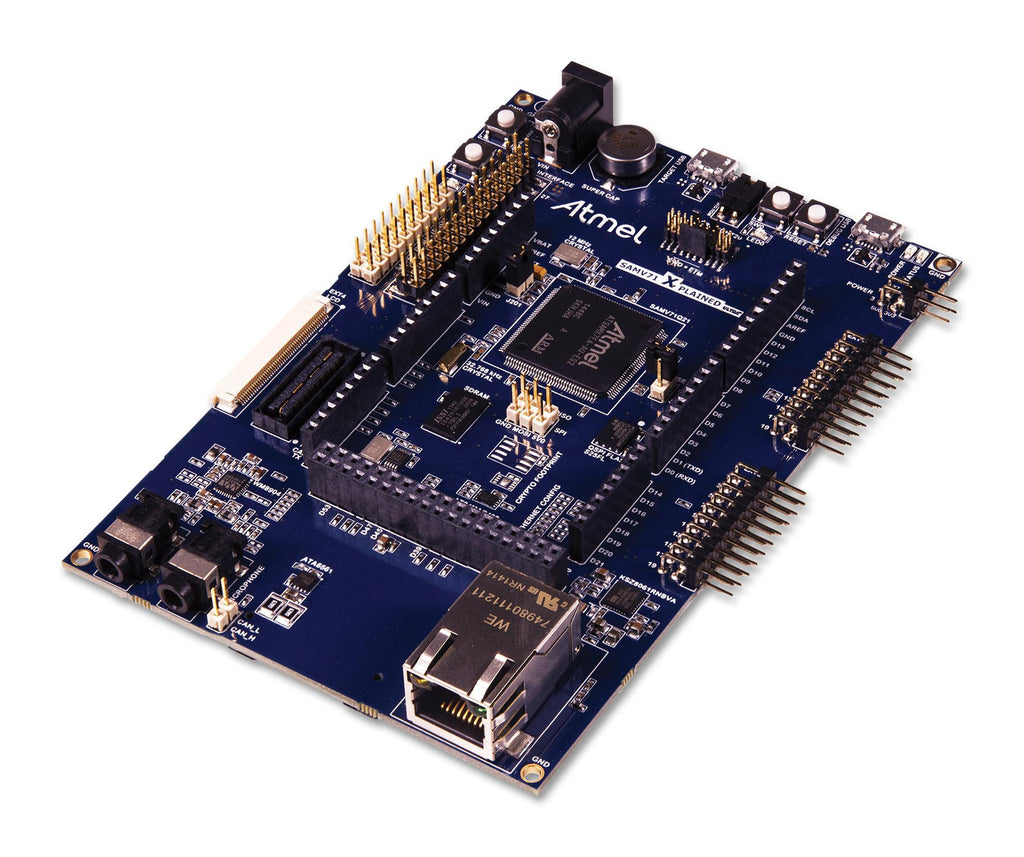

The ATSAMV71-XULT is an Atmel SMART SAM V71 Xplained ultra evaluation kit. It is a hardware platform to evaluate the ATSAMV71Q21 and other Atmel ARM Cortex-M7 based microcontrollers in the SAM V70, SAM S70 and SAM E70 series. The ATSAMV71Q21 is a ARM Cortex-M7 microcontroller with 2MB flash, 384kB multi port SRAM, QSPI, 10/100Mbps Ethernet MAC and MediaLB 3 wire. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAMV71Q21 and explains how to integrate the device in a custom design.
- One mechanical reset button, one power switch button, two mechanical user pushbuttons, two user LEDs
- Supercap backup
- Coresight 20 connector for 4bit ETM
- 2MB SDRAM and 2MB QSPI flash
- Built in Ethernet MAC with external IEEE 802.3az 10Base-T/100Base-TX Ethernet RMII PHY
- AT24MAC402 256Kbytes EEPROM with EUI48 address
- ATA6561 CAN transceiver
- SD card connector with SDIO support
- Camera interface connector, MediaLB connector, two extension headers and one LCD header
Applications
Embedded Design & Development, Automotive, Building Automation, Lighting, Metering, Consumer Electronics, Portable Devices, Industrial, Security
Footnotes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Product details
| Kit Contents | Eval Board ATSAMV71Q21 |
| Silicon Core Number | ATSAMV71Q21 |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Silicon Family Name | SAM V |
| Product Range | - |
| Core Sub-Architecture | Cortex-M7 |
| Silicon Manufacturer | Atmel |
Other details
| Brand | MICROCHIP |
| Part Number | ATSAMV71-XULT |
| Quantity | Each |
| Operating Instructions EN |  |
