Microchip ATSAMD21J17A-AU ATSAMD21J17A-AU ARM MCU SAM D Series SAM32 Family D2X Microcontrollers Cortex-M0+ 32 bit 48 MHz

The ATSAMD21J17A-AU is a SMART SAMD21 series 32-bit Low-power Microcontroller based on the high-performance ARM Cortex-M0+ RISC processor. It operates at a maximum speed of 48MHz and features 128kB of flash memory and 16kB of SRAM. Peripherals include six serial communication modules (SERCOM) configurable as UART/USART, five 16-bit timers/counters, 32-bit real-time clock and calendar, 24 PWM channels, one 20-channel 12-bit ADC, one 10-bit DAC, full speed USB device and embedded host and support for up to 256 touch channels. The device operates from 1.62 to 3.63V.

• ARM Cortex-M0+ CPU running at up to 48MHz
• Single-cycle hardware multiplier
• Micro trace buffer (MTB)
• Power-on reset (POR) and brown-out detection (BOD)
• External interrupt controller (EIC)
• 16 External interrupts
• One non-maskable interrupt
• Two-pin serial wire debug (SWD) programming, test and debugging interface
• Idle and standby sleep modes
• SleepWalking peripherals
• 12-channel Direct memory access controller (DMAC)
• 12-channel Event system
• 32-bit Real-time counter (RTC) with clock/calendar function
• Watchdog timer (WDT)
• CRC-32 generator
• One full-speed (12Mbps) Universal serial bus (USB) 2.0 interface
• Peripheral touch controller (PTC)
• Easy pin migration to SAMD21G and SAMD21J devices

Applications

Lighting, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	ATSAMD21J17A-AU
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN

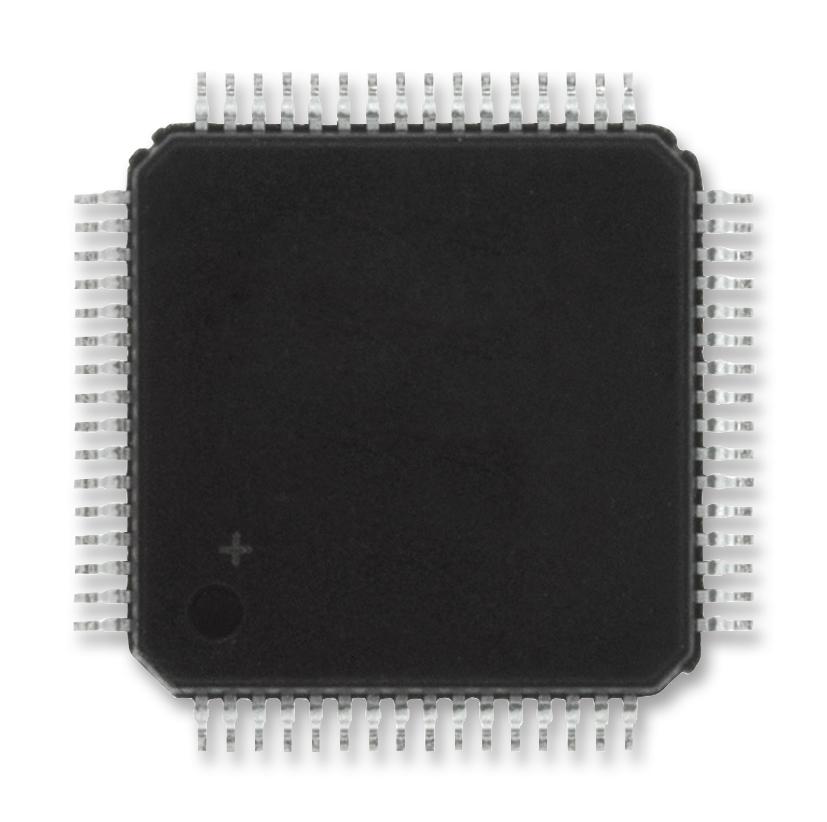

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
