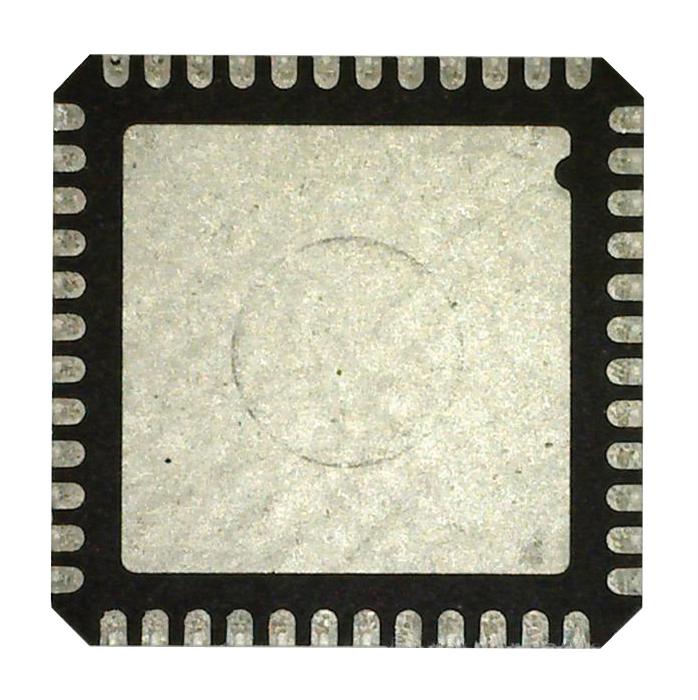

SMART ARM-based microcontroller.
- ARM Cortex-M0+ CPU running at up to 48MHz
- Single-cycle hardware multiplier and in-system self-programmable flash
- Power-on reset (POR) and brown-out detection (BOD)
- External Interrupt Controller (EIC), idle and standby sleep modes
- 12-channel DMAC, up to five 16bit TC, three 24bit TCC, 32bit RTC with clock/calendar function
- Watchdog Timer (WDT), CRC-32 generator
- One 2-ch Inter-IC Sound (I2S) interface, 2 analogue comparators (AC) with window compare function
- 256-channel capacitive touch and proximity sensing
- Up to 52 programmable I/O pins
- Drop in compatible with SAM D20
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MICROCHIP |
| Part Number |
ATSAMD21G18A-MF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
| Product Change Notice EN |
|
