Description

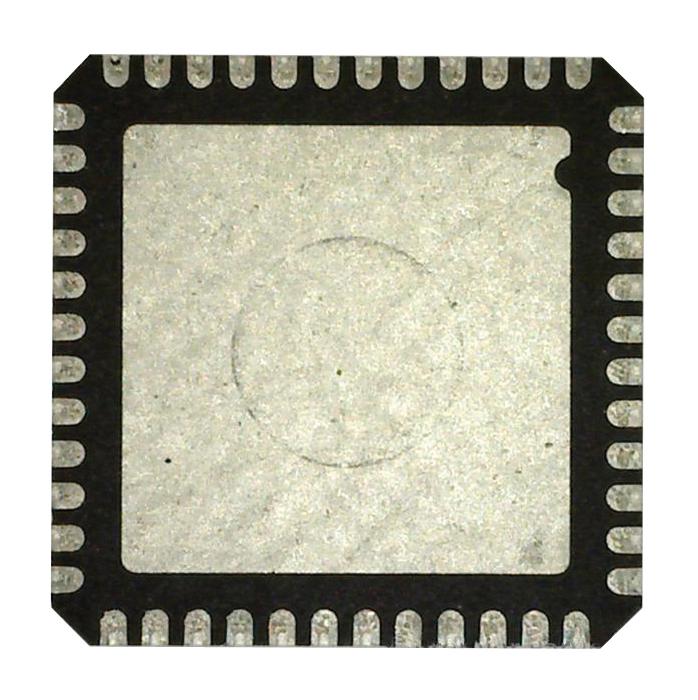

SMART ARM-based microcontroller. It is designed for simple and intuitive migration with identical peripheral modules, hex compatible code, identical linear address map and pin compatible migration paths between all devices in the product series. All devices include intelligent and flexible peripherals, Atmel Event System for inter-peripheral signalling and support for capacitive touch button, slider and wheel user interfaces.
- Power-on reset (POR) and brown-out detection (BOD), External Interrupt Controller (EIC)
- Idle and standby sleep modes
- Sleepwalking peripherals
- 8-ch event system, 32bit RTC with clock/calendar function
- Watchdog Timer (WDT)
- CRC-32 generator, up to six SERCOM, 14ADC, 2 comparators
- 16 external interrupt lines, RTC alarms
- SW debug interface
- Up to 38 programmable I/O pins
- Peripheral Touch Controller (PTC)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: SAM32 Family SAM D2X Series Microcontrollers |
| Device Core: ARM Cortex-M0+ |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 48MHz |
| Program Memory Size: 256KB |
| No. of Pins: 48Pins |
| IC Case / Package: QFN |
| No. of I/O's: 38I/O's |
| Interfaces: I2C, SPI, UART, USART |
| RAM Memory Size: 32KB |
| ADC Channels: 14Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.62V |
| Supply Voltage Max: 3.63V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: SAM32 |
| MCU Series: SAM D2X |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | ATSAMD20G18A-MN |
| Quantity | Each |
| Technical Data Sheet EN |  |
