Description

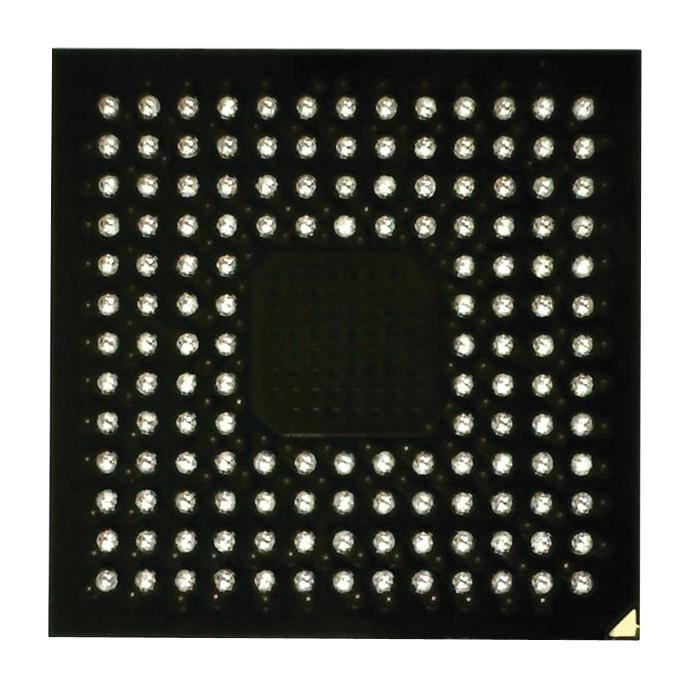

The SAM4E16EA-CU delivers a rich set of advanced connectivity peripherals and a floating point unit (FPU). Based on the 32-bit ARM® Cortexâ�¢-M4 processor, the ATSAM4E16EA-CU operate up to 120MHz and offer up to 1024KB of Flash, 2KB of cache memory and up to 128KB of SRAM. This MCU offers a rich set of advanced connectivity peripherals such as a 10/100Mbps Ethernet MAC supporting IEEE 1588 and dual CAN.
- ARM Cortex-M4 processor running at 120MHz
- Floating point unit
- 2KB cache providing zero wait state flash access at full speed
- 10/100 Ethernet MAC, supporting IEEE1588
- 1MB flash
- Two 16bit analogue-to-digital converters (ADCs) with up to 24 channels
- Programmable gain amplifier
- Offset error correction
- Gain error correction
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: SAM32 Family SAM 4E Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 120MHz |
| Program Memory Size: 1MB |
| No. of Pins: 144Pins |
| IC Case / Package: LFBGA |
| No. of I/O's: 117I/O's |
| Interfaces: CAN, SPI, UART, USB |
| RAM Memory Size: 128KB |
| ADC Channels: 24Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.08V |
| Supply Voltage Max: 1.32V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: SAM32 |
| MCU Series: SAM 4E |
| Qualification: - |
| MSL: - |
Other details
| Brand | MICROCHIP |
| Part Number | ATSAM4E16EA-CU |
| Quantity | Each |
| Technical Data Sheet EN |  |
