Microchip ATMEGA88PA-MMH ATMEGA88PA-MMH 8 Bit MCU AVR Atmega Family ATmega88 Series Microcontrollers 20 MHz KB 28 Pins QFN

The ATMEGA88PA-MMH is a 8-bit high-performance picoPower AVR RISC-based Microcontroller combines 8kB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1kB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• Advanced RISC architecture - On-chip 2-cycle multiplier
• High endurance, non-volatile memory segments
• QTouch® library support - Capacitive touch buttons, sliders and wheels
• Peripheral features - Real time counter with separate oscillator
• Temperature measurement - Programmable serial USART
• Power-on reset (POR) and programmable brown-out detection
• Internal calibrated oscillator
• External and internal interrupt sources
• Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
• -40 to +85°C Industrial operating temperature range

Applications

Industrial, Computers & Computer Peripherals

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	ATMEGA88PA-MMH
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN

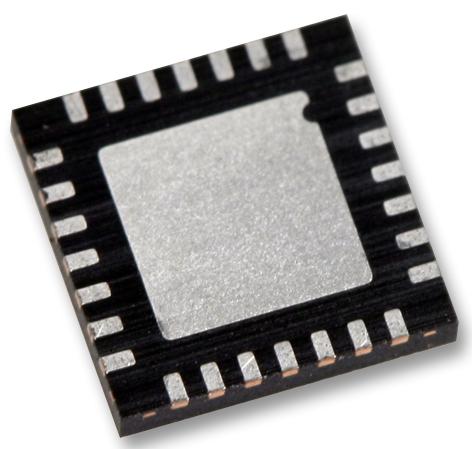

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
