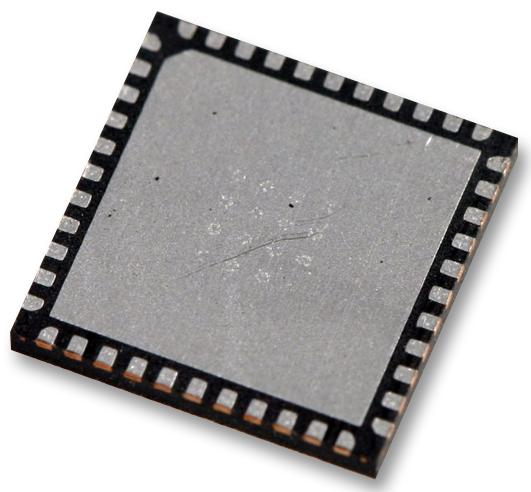

MICROCHIP ATMEGA644P-20MU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega64 Series Microcontrollers, AVR

The ATMEGA644P-20MU is a low-power CMOS 8-bit Microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega644P achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATmega644P provides 64kB of in-system programmable flash with Read-While-Write capabilities, 2kB EEPROM, 4kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter (RTC), three flexible timers/counters with compare modes and PWM, 2 USARTs, a byte oriented 2-wire Serial Interface, a 8-channel, 10-bit ADC with optional differential input stage with programmable gain, programmable Watchdog Timer with Internal Oscillator, an SPI serial port, IEEE std. 1149.1 compliant JTAG test interface.

• Advanced RISC architecture
• Power-on reset and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
• 131 powerful instructions-most single clock cycle execution
• 32 x 8 general purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On-chip 2-cycle multiplier
• JTAG (IEEE std. 1149.1 compliant) interface
• Programmable watchdog timer with separate on-chip oscillator
• On-chip analogue comparator
• Interrupt and wake-up on pin change
• Two 8-bit timers/counters with separate prescalers and compare modes
• One 16 bit timer/counter with separate prescaler, compare mode and capture mode
• Real-time counter with separate oscillator
• Six PWM channels
• Two programmable serial USART
• Serial peripheral interface (SPI)

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
