Description
Low power CMOS 8bit microcontroller based on the AVR enhanced RISC architecture allowing the system designer to optimize power consumption versus processing speed. Powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.
- High endurance non-volatile memory segments (4Kbytes flash, 256bytes EEPROM, 512bytes RAM)
- Programming lock for software security
- Atmel® QTouch® library support (capacitive touch buttons, sliders and wheels, up to 64 sense ch)
- Peripheral features - programmable serial USART with start-of-frame detection
- Serial interface (SPI), On-chip analogue comparator (AC)
- Interrupt and Wake-up on pin change
- Power-On Reset (POR) and programmable brown-out detection (BOD)
- Internal calibrated oscillator
- External and internal interrupt sources
- Unique device ID
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: AVR ATmega Family ATmega48 Series Microcontrollers |
| Device Core: AVR |
| Operating Frequency Max: 20MHz |
| Program Memory Size: 4KB |
| No. of Pins: 32Pins |

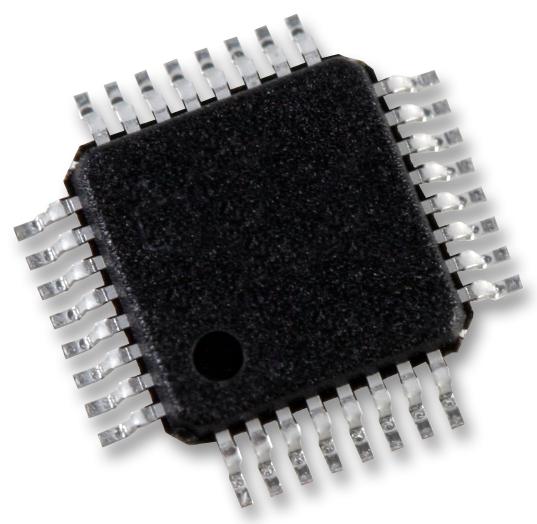

| IC Case / Package: TQFP |
| No. of I/O's: 27I/O's |
| Interfaces: I2C, SPI, USART |
| RAM Memory Size: 512Byte |
| ADC Channels: 8Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: AVR ATmega |
| MCU Series: ATmega48 |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | ATMEGA48PB-AU |
| Quantity | Each |
| Technical Data Sheet EN |  |
