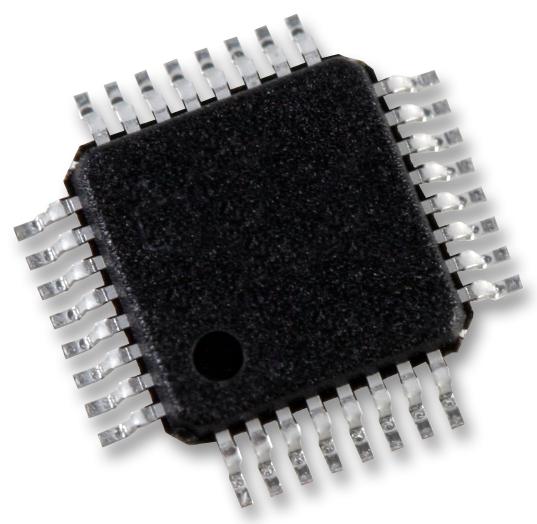

MICROCHIP ATMEGA48A-AU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega48 Series Microcontrollers, AVR

The ATMEGA48A-AU is a 8-bit high-performance AVR RISC-based Microcontroller combines 4kB ISP flash memory, 256B EEPROM, 512B SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers.

• Advanced RISC architecture - On-chip 2-cycle multiplier
• High endurance, non-volatile memory segments
• QTouch® library support - Capacitive touch buttons, sliders and wheels
• Peripheral features - Real time counter with separate oscillator
• Temperature measurement - Programmable serial USART
• Power-on reset (POR) and programmable brown-out detection
• Internal calibrated oscillator
• External and internal interrupt sources
• Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
• -40 to +85°C Industrial operating temperature range

Applications

Industrial, Computers & Computer Peripherals

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
