Description
The ATMEGA32M1-AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 32kb ISP flash memory with read-while-write capabilities, 1kb EEPROM, 27 general purpose I/O lines, 32 general purpose working registers, one motor power stage controller, two flexible timer/counters with compare modes and PWM, UART with HW LIN, 11-channel 10-bit A/D converter with two differential programmable gain input stages, 10-bit D/A converter, programmable watchdog timer with internal individual oscillator, SPI serial port, on-chip debug system and four software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
- High-performance, Low-power AVR® 8-Bit Microcontroller
- Advanced RISC Architecture
- Data and Non-volatile Program Memory
- On-chip Debug Interface (debugWIRE)
- CAN 2.0A/B with Six Message Objects, ISO 16845 Certified
- LIN 2.1 and 1.3 Controller or 8-bit UART
- One 12-bit High Speed PSC (Power Stage Controller)
- Low-power Idle, Noise Reduction and Power Down Modes
- Power On Reset and Programmable Brown-out Detection
- In-system Programmable via SPI Port
- High Precision Crystal Oscillator for CAN Operations (16MHz)
- Internal Calibrated RC Oscillator (8MHz)
- On-chip PLL for Fast PWM (32MHz, 64MHz) and CPU (16MHz)
- 0 to 16MHz at 4.5 to 5.5V Speed Grade
Applications
Consumer Electronics, Motor Drive & Control, Industrial, Communications & Networking, Sensing & Instrumentation
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: AVR ATmega Family ATmega32 Series Microcontrollers |
Device Core: AVR |
Operating Frequency Max: 16MHz |
Program Memory Size: 32KB |
No. of Pins: 32Pins |

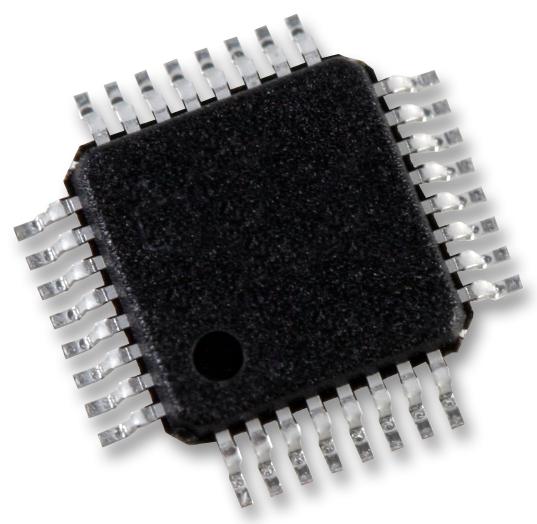

IC Case / Package: TQFP |
No. of I/O's: 27I/O's |
Interfaces: CAN, SPI, UART |
RAM Memory Size: 2KB |
ADC Channels: 11Channels |
ADC Resolution: 10Bit |
Supply Voltage Min: 2.7V |
Supply Voltage Max: 5.5V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Family: AVR ATmega |
MCU Series: ATmega32 |
Qualification: - |
MSL: MSL 3 - 168 hours |
Other details
Brand | MICROCHIP |
Part Number | ATMEGA32M1-AU |
Quantity | Each |
Technical Data Sheet EN |
