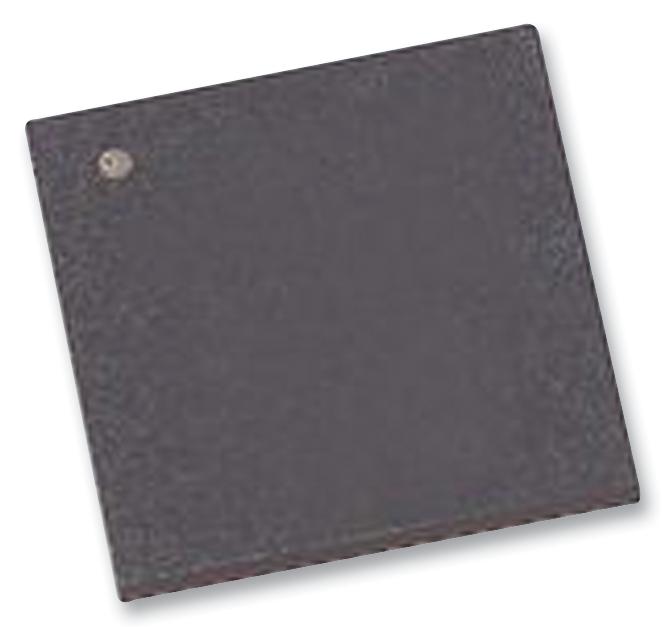

MICROCHIP ATMEGA32L-8MU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega32 Series Microcontrollers, AVR

The ATMEGA32L-8MU is a high-performance, low-power 8bit AVR RISC-based microcontroller combines 32kB of programmable flash memory, 2kB SRAM, 1kB EEPROM, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device supports throughput of 16MIPS at 16MHz and operates between 4.5 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using high density non-volatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer, or by an on-chip boot program running on the AVR core. The boot program can use any interface to download the application program in the application flash memory.

• Advanced RISC architecture
• Power-on reset and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
• 131 powerful instructions-most single clock cycle execution
• 32 x 8 general purpose working registers
• Fully static operation
• Up to 16MIPS throughput at 16MHz
• On-chip 2-cycle multiplier
• JTAG (IEEE std. 1149.1 compliant) interface
• Programmable watchdog timer with separate on-chip oscillator
• On-chip analogue comparator
• Real-time counter with separate oscillator
• Four PWM channels
• Two 8bit timers/counters with separate prescalers and compare modes
• One 16bit timer/counter with separate prescaler, compare mode and capture mode
• Byte-oriented two-wire serial interface
• Programmable serial USART
• Serial peripheral interface (SPI)

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
