Low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328PB achieves throughputs close to 1MIPS per MHz. This empowers system designers to optimize the device for power consumption versus processing speed.
- 131 powerful instructions, fully static operation
- High endurance non-volatile memory segments
- Programming lock for software security
- Peripheral Touch Controller (PTC), 2 programmable serial USARTs, 10 PWM channel
- On-chip analogue comparator
- Interrupt and wake-up on pin change
- Power-on reset and programmable brown-out detection
- Six sleep modes, external and internal interrupt sources
- Speed grade: 0 - 4MHz at 1.8 - 5.5V, 0 - 10MHz at 2.7 - 5.5V and 0 - 20MHz at 4.5 - 5.5V
- Industrial -40°C to 105°C operational range
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MICROCHIP |
| Part Number |
ATMEGA328PB-AN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

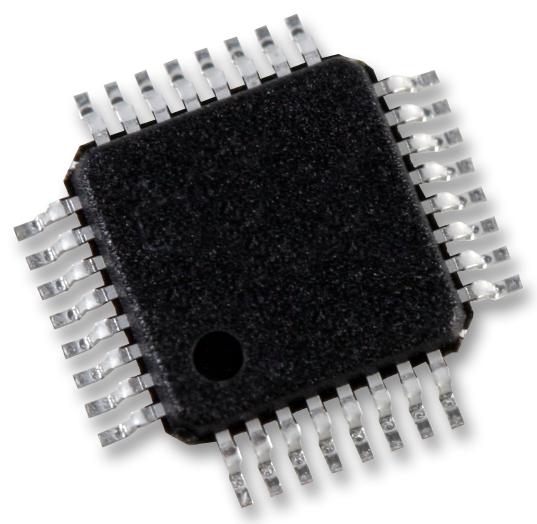

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
