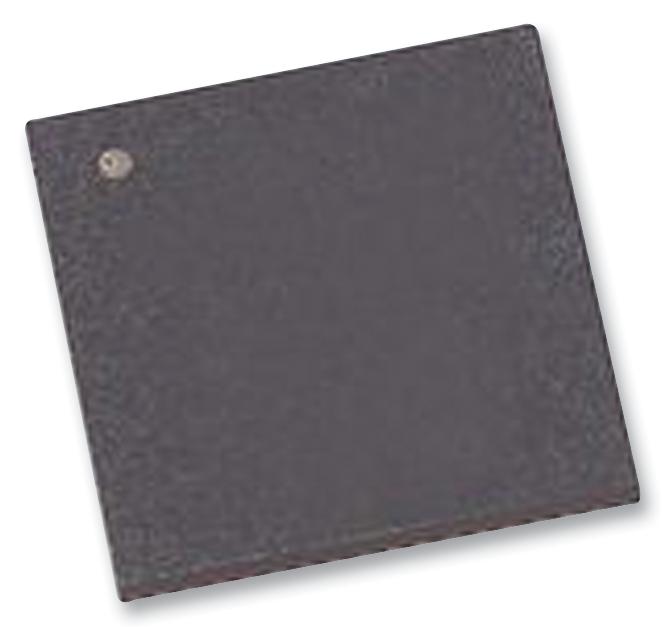

MICROCHIP ATMEGA128L-8MU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega128L Series Microcontrollers, AVR

The ATMEGA128L-8MU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 128kB of programmable flash memory, 4kB SRAM, a 4kB EEPROM, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device supports throughput of 16MIPS at 16MHz and operates between 4.5 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the high-density non-volatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer, or by an on-chip boot program running on the AVR core. The boot program can use any interface to download the application program in the application flash memory.

• Advanced RISC architecture
• Power-on reset and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
• Software selectable clock frequency
• ATmega103 compatibility mode selected by a fuse
• Global pull-up disable
• QTouch® library support
• JTAG (IEEE std. 1149.1 compliant) interface
• Two 8-bit timers/counters with separate prescalers and compare modes
• Two expanded 16-bit timers/counters with separate prescaler, compare mode and capture mode
• Real-time counter with separate oscillator
• Two 8-bit PWM channels
• 6 PWM channels with programmable resolution from 2 to 16-bits
• Output compare modulator
• Byte-oriented two-wire serial interface
• Dual programmable serial USARTs
• Serial peripheral interface (SPI)
• Programmable watchdog timer with on-chip oscillator
• On-chip analogue comparator
