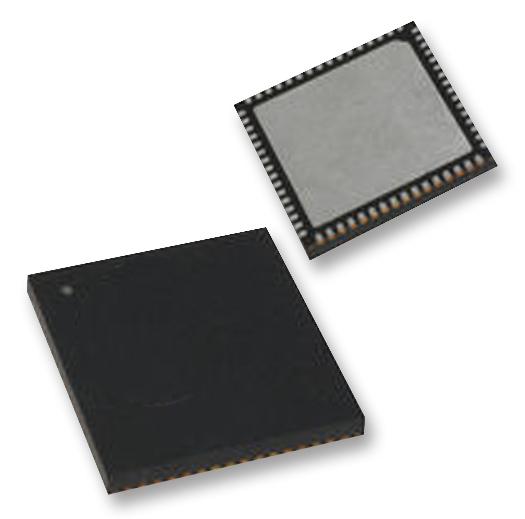

MICROCHIP ATMEGA128A-MU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega128 Series Microcontrollers, AVR

The ATMEGA128A-MU is a high-performance, low-power 8bit AVR RISC-based microcontroller combines 128kB flash memory with read-while-write capabilities, 4kB EEPROM, 4kB SRAM, 53 general purpose I/O lines, 32 general purpose working registers, real time counter, four flexible timers/counters with compare modes and PWM, two USARTs, a byte oriented Two-wire serial interface, a 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for accessing the on-chip debugging and programming and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the high-density non-volatile memory technology.

• Advanced RISC architecture
• Power-on reset and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby
• Software selectable clock frequency
• ATmega103 compatibility mode selected by a fuse
• Global pull-up disable
• 133 powerful instructions most single-clock cycle execution
• 32 x 8 general purpose working registers + peripheral control registers
• Fully static operation
• Up to 16MIPS throughput at 16MHz
• On-chip 2-cycle multiplier
• QTouch® library support

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
