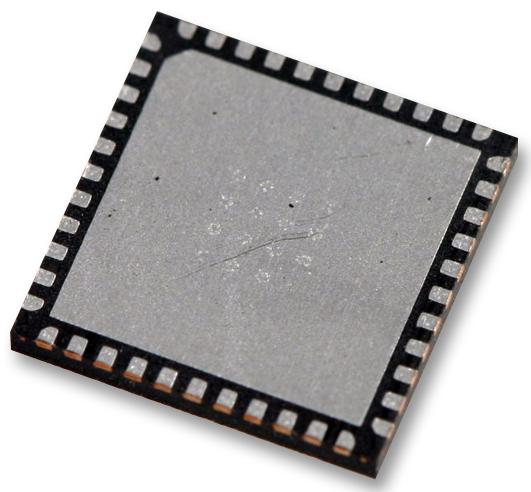

MICROCHIP ATMEGA1284P-MU 8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega128 Series Microcontrollers, AVR

The ATMEGA1284P-MU is a 8-bit high-performance AVR RISC-based Microcontroller combines 128kB ISP flash memory with read-while-write capabilities, 4kB EEPROM, 16kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timer/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• Advanced RISC architecture
• High endurance, non-volatile memory segments
• JTAG (IEEE 1149.1 compliant) interface
• Two 8-bit timer/counters with separate prescalers and compare modes
• One/two 16-bit timer/counter with separate prescaler, compare mode and capture mode
• Power-on reset (POR) and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
