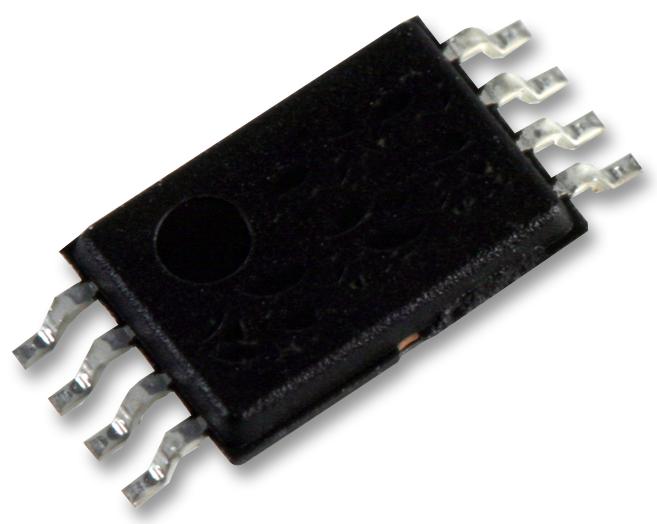

Microchip 24LC64-I/ST 24LC64-I/ST Eeprom 64 Kbit 8K x 8bit Serial I2C (2-Wire) 400 kHz Tssop 8 Pins

The 24LC64-I/ST is a 64kB I²C serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as a single block of 8K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1mA and 1mA, respectively. It has been developed for advanced, low-power applications such as personal communications or data acquisition. The 24XX64 also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512kB address space.

• Single supply with operation down to 2.5V
• Low-power CMOS technology
• 2-wire serial interface (I²Câ�¢ compatible)
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 and 400kHz Clock compatibility
• Page write time 5ms maximum
• Self-timed erase/write cycle
• 32-byte page write buffer
• Hardware write-protect 1/4 array
• ESD protection >4000V
• More than 1million erase/write cycles
• Data retention >200 years

Applications

Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	24LC64-I/ST
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Miscellaneous EN
Product Change Notice EN
