| ₹ 159.68 includes GST and import duties. | |
| B2B customers can avail ₹ 24.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

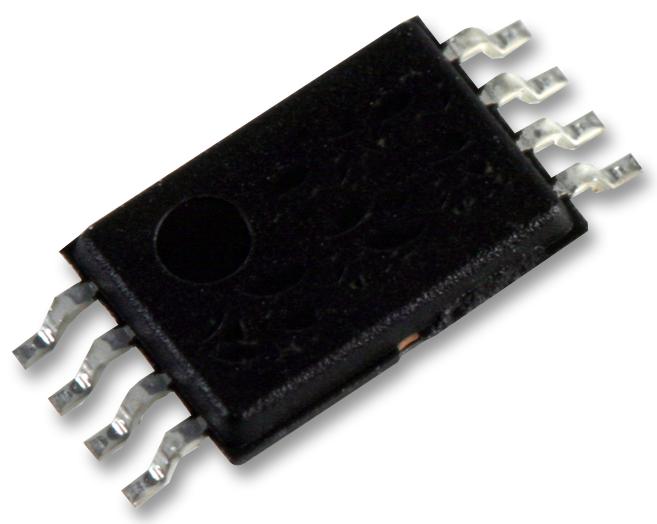

The 24LC256-I/ST is a 256kb (32k x 8) I²C� CMOS serial Electrically Erasable PROM (EEPROM) capable of operation across a broad voltage range (1.7 to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64-byte of data. This device is capable of both random and sequential reads up to the 256k boundary. Functional address lines allow up to eight devices on the same bus, for up to 2Mb address space.
- Self-timed erase/write cycle
- 5ms Maximum page write time
- Hardware write-protect pin
- Factory programming available
- 400µA Maximum read current
- 1µA Maximum standby current
- Cascadable up to eight devices
- Schmitt trigger inputs for noise suppression
- Output slope control to eliminate ground bounce
- >4000V ESD protection
- 2-wire serial interface, I²C� compatible
- More than one million erase/write cycles
- >200-year Data retention
Industrial, Communications & Networking, Automotive
Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MICROCHIP |
| Part Number | 24LC256-I/ST |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 156.49 |
| 3-5 | ₹ 154.89 |
| 5-10 | ₹ 151.7 |
| 10+ | ₹ 148.5 |
Bulk discount will be automatically applied during checkout based on quantity.
