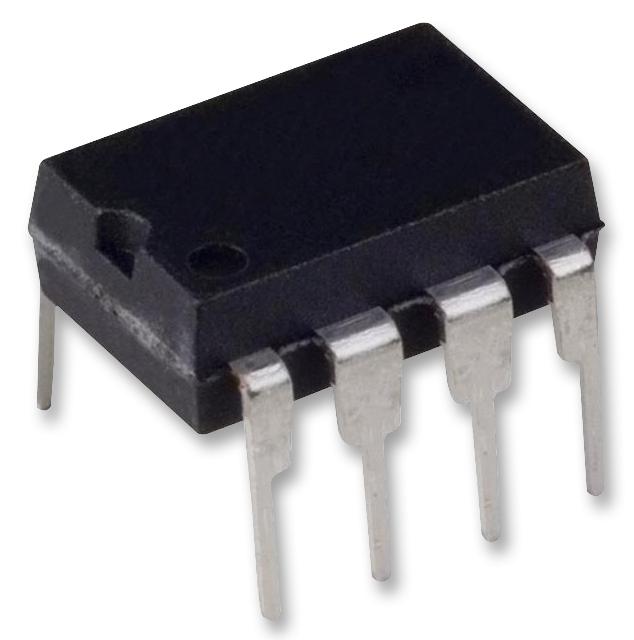

Microchip 24AA1026-I/P Eeprom 1 Mbit 128K x 8bit Serial I2C (2-Wire) 400 kHz DIP 8 Pins

The 24AA1026-I/P is a 1024kB I²C serial Electrically Erasable Programmable Read-Only Memory (EEPROM) capable of operation across a broad voltage range 1.7 to 5.5V. It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device has both byte write and page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads. Reads may be sequential within address boundaries 0000h to FFFFh and 10000h to 1FFFFh. Functional address lines allow up to four devices on the same data bus. This allows for up to 4Mb total system EEPROM memory.

• Low-power CMOS technology
• 2-wire serial interface (I²Câ�¢ compatible)
• Cascadable up to four devices
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 and 400kHz Clock compatibility
• Page write time 3ms typical
• Self-timed erase/write cycle
• 128byte Page write buffer
• Hardware write-protect
• ESD protection >4000V
• More than 1million erase/write cycles
• Data retention >200 years

Applications

Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	24AA1026-I/P
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
Miscellaneous EN
CAD CadSoft_EAGLE EN
