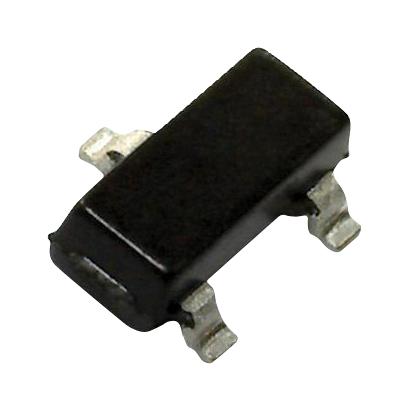

Microchip 11AA02E48T-I/TT 11AA02E48T-I/TT Eeprom 2 Kbit 256 x 8bit Serial UNI/O 100 kHz SOT-23 3 Pins

The 11AA02E48T-I/TT is a 2kB 1.8V serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized in blocks of x8-bit memory and support the patented single I/O UNI/O® serial bus. By using Manchester encoding techniques, the clock and data are combined into a single, serial bit stream (SCIO), where the clock signal is extracted by the receiver to correctly decode the timing and value of each bit. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1µA and 1mA, respectively.

• Pre-programmed globally unique, 48-bit node address
• Compatible with EUI-48â�¢ and EUI-64â�¢
• Low-power CMOS technology
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• Self-timed write cycle
• Page-write buffer for up to 16 bytes
• STATUS Register for added control
• Write enable latch bit
• Write-in-progress bit
• Block write protection - Protect none 1/4, 1/2 or all of array
• Built-in write protection
• Power-on/off data protection circuitry
• Write enable latch
• High reliability
• Endurance - 1000000 erase/write cycles
• Data retention - >200 years
• ESD protection - >4000V

Applications

Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	11AA02E48T-I/TT
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
One Page Summary EN
Product Change Notice EN
