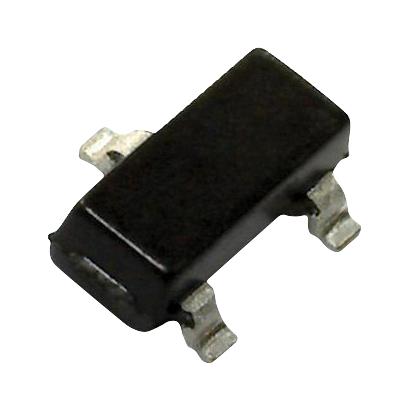

MICROCHIP 11AA010T-I/TT EEPROM, 1 Kbit, 128 x 8bit, UNI/O, 100 kHz, SOT-23, 3 Pins

The 11AA010T-I/TT is a 1kB through 16kB serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized in blocks of x8-bit memory and support the patented single I/O UNI/O® serial bus. By using Manchester encoding techniques, the clock and data are combined into a single, serial bit stream (SCIO), where the clock signal is extracted by the receiver to correctly decode the timing and value of each bit. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1µA and 1mA respectively.

• Low-power CMOS technology
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• Self-timed write cycle
• Page-write buffer for up to 16 bytes
• STATUS Register for added control
• Write enable latch bit
• Write-in-progress bit
• Block write protection - Protect none, 1/4, 1/2 or all of array
• Built-in write protection
• Power-on/off data protection circuitry
• Write enable latch
• High reliability
• Endurance - 1000000 erase/write cycles
• Data retention - <gt/>200 years
• ESD protection - <gt/>4000V

Applications

Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
