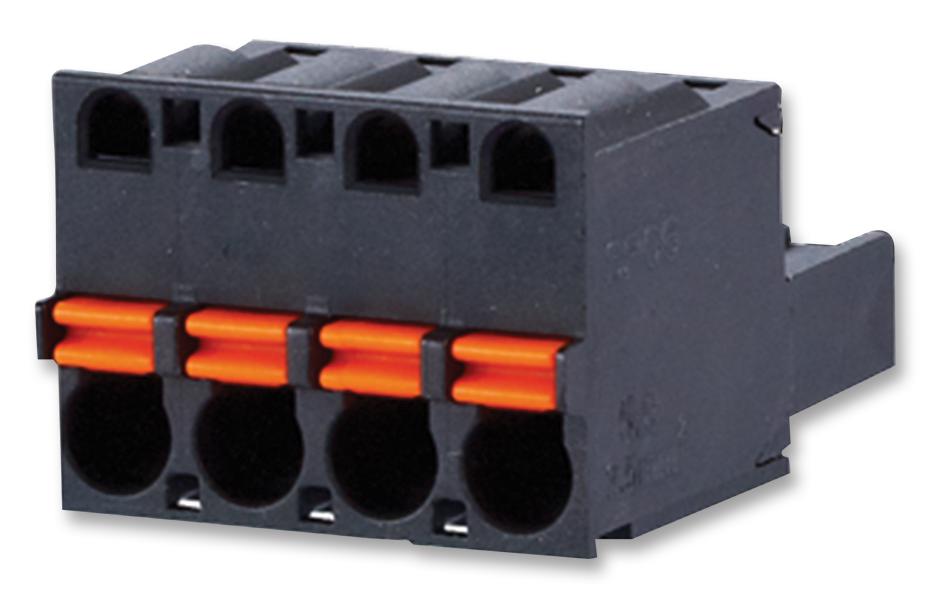

- Pluggable spring clamp terminal block
- Centerline 5.00mm, direction of connection vertical 0°
- Fittable without loss of poles
- Color is black
- Push-button, wire entry uncodeable side parallel to plug direction
- Number of poles are 2 minimum, 24 maximum
- Insulating class is CTI 600 and PA66 material, CuSn contact
- Clearance/creepage distance is 3.5mm
- IP20 protection, limit temperature range from -40°C to 105°C
- Minimum insulation strip length is 10mm, rated current is 12A
Product details
| Pitch Spacing:
5mm
|
| No. of Positions:
5Ways
|
| Wire Size (AWG):
28AWG to 12AWG
|
| Conductor Area CSA:
2.5mm²
|
| Wire Connection Method:
Push In Lock
|
| Rated Current:
12A
|
| Rated Voltage:
250V
|
| Product Range:
-
|
Other details
| Brand |
METZ CONNECT |
| Part Number |
SP06505VBNC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
