Description

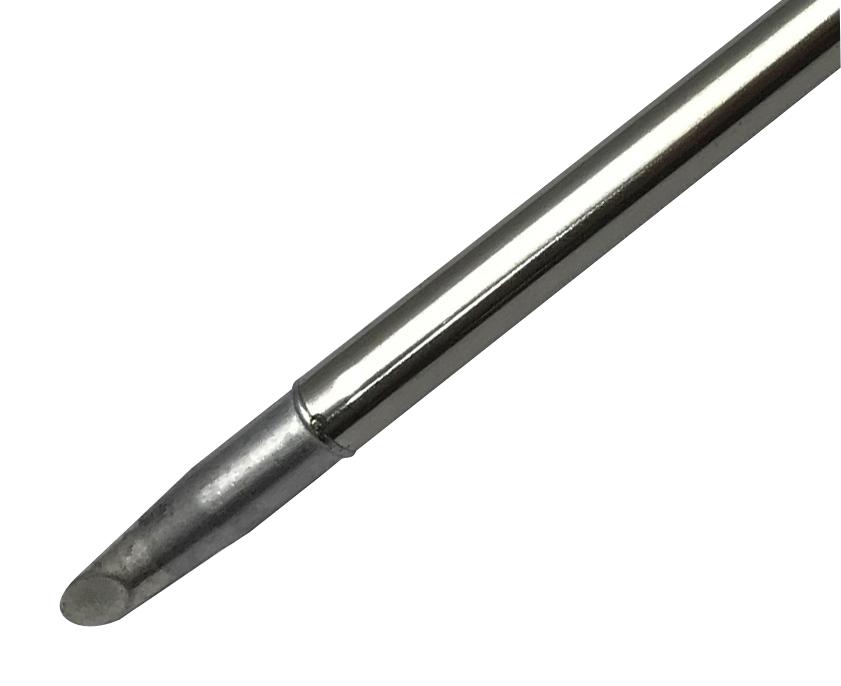

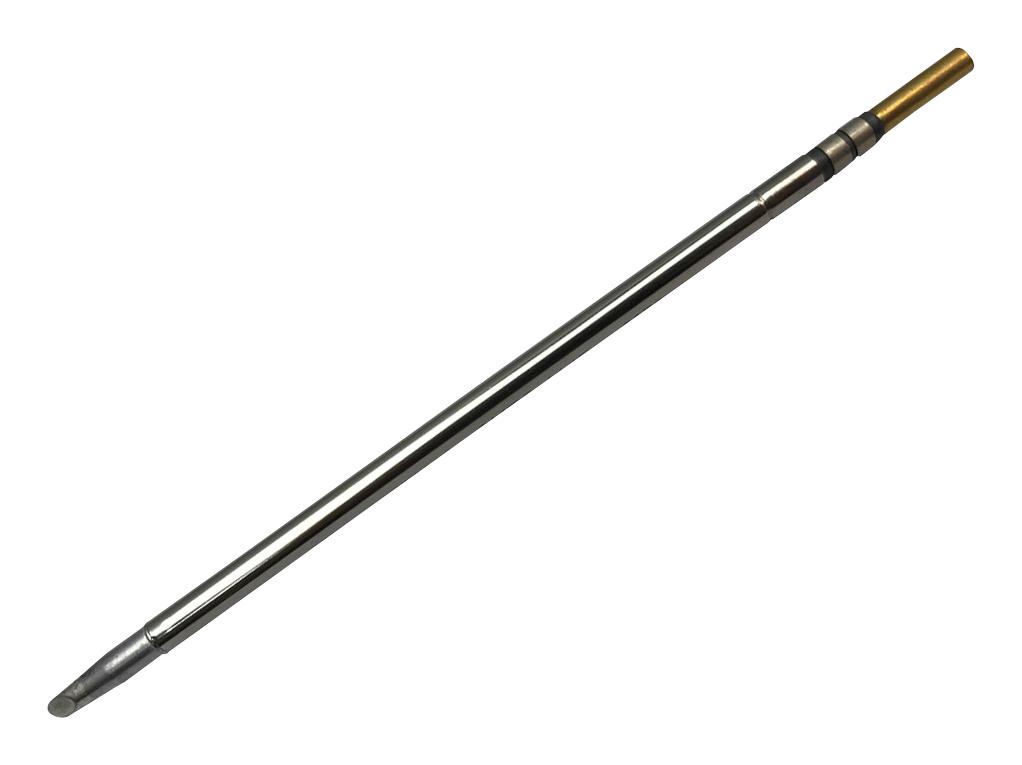

The SMC-7HF6033S from Metcal is a SMC series surface mount cartridge. This cartridge is used with CV-5200 soldering systems. SMC series provides a wide range of options for through-hole and SMD rework.

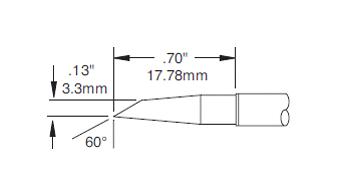

- 3,3 mm Tip / Nozzle Diameter
- 17,8 mm Tip / Nozzle Length
- Style - Hoof, 60� bevelled, Long Reach
- 390 °C Soldering Idle Temperature
- 700 = FR4/Fiber Glass, for most standard applications
- Idle Temperature 390 °C
Applications
Industrial
Product details
| Tip / Nozzle Width: 3.3mm |
| Tip / Nozzle Style: 60° Hoof |
| For Use With: Metcal CV-5200, CV-500 Connection Validation System, MX-5200, MX-5000, MX-500 Soldering Station, CV-H1-AV, MX-H1-AV, MX-RM3E Solder Pen, MX-UK1 Upgrade-Kit |
| Product Range: CV/MX System |
Other details
| Brand | METCAL |
| Part Number | SMC-7HF6033S |
| Quantity | Each |
| Technical Data Sheet EN |  |
