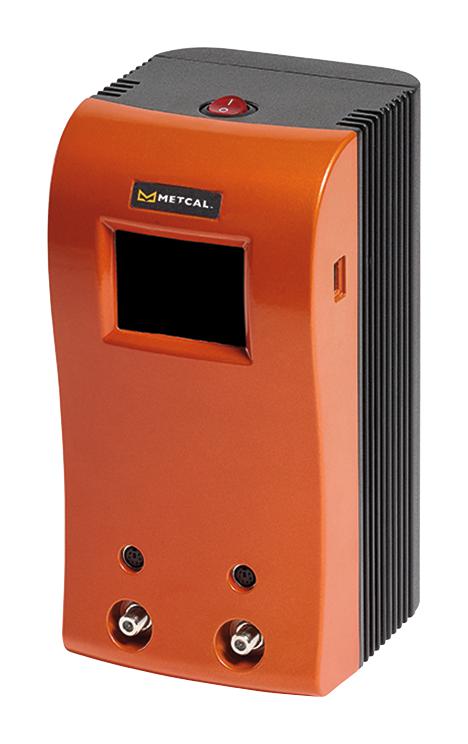

METCAL CV-PS5200 Soldering Station Power Supply, For CV-5200 Series Station, 125 W, 240 V

The CV-PS5210 from Metcal is a CV-5200 series Connection Validation� digital soldering station. It delivers the right amount of power based on the requirements of the solder joint through the use of SmartHeat® technology. The SmartHeat® senses the thermal load and instantly delivers power on demand directly to the joint. The embedded, self-regulating heater delivers right amount of power based on the requirements of solder joint. This provides a fast, safe and repeatable process with no calibration required. It features 10 to 40°C ambient operating temperature and 55°C maximum enclosure temperature. Tip temperature accuracy meets or exceeds IPC J-STD-001 standard.

• Patented Connection Validation� IMC formation technology & patented chip-in-cartridge technology
• 2.8� colour TFT LCD display with bold graphics (320x240 RGB resolution, 43.20 x 57.60mm active area)
• USB communications port for process traceability data and firmware graphics
• Precise tip temperature display, password protection, single port connection
• Integrated net power meter and power graph
• 100VAC to 240VAC, grounded circuit input line voltage, 50Hz/60Hz input line frequency
• <lt/>2mV tip to ground potential, <lt/>2ohm tip to ground resistance, 1.1°C idle temperature stability
