Description

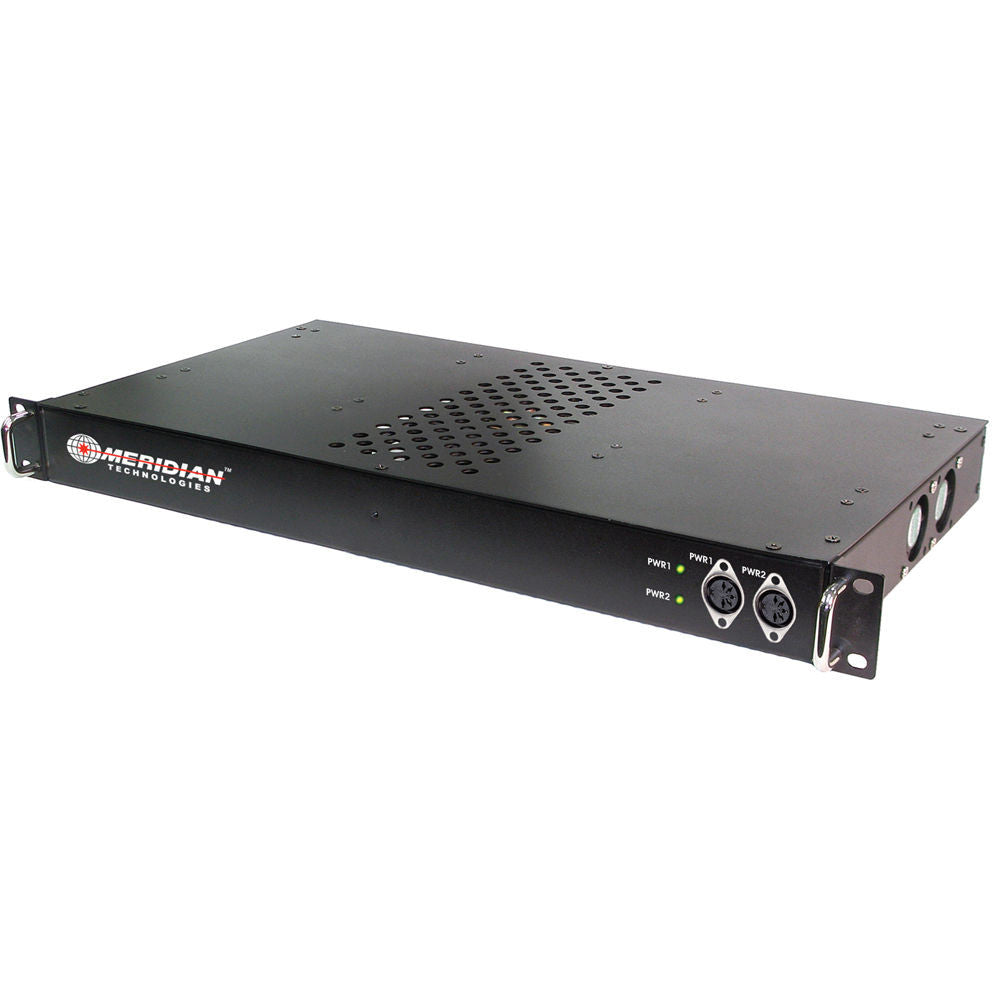

The Meridian Technologies SR-1600/S 1 RU Rack Mount Chassis is a universal 1U high subrack that accepts all fiber optic transmission cards from Meridian Technologies. It is a standard EIA chassis frame that houses DigiSlim, DigiCool, and DigiFlex Fiber Optic Transmission Rack-Mount Cards (sold separately).

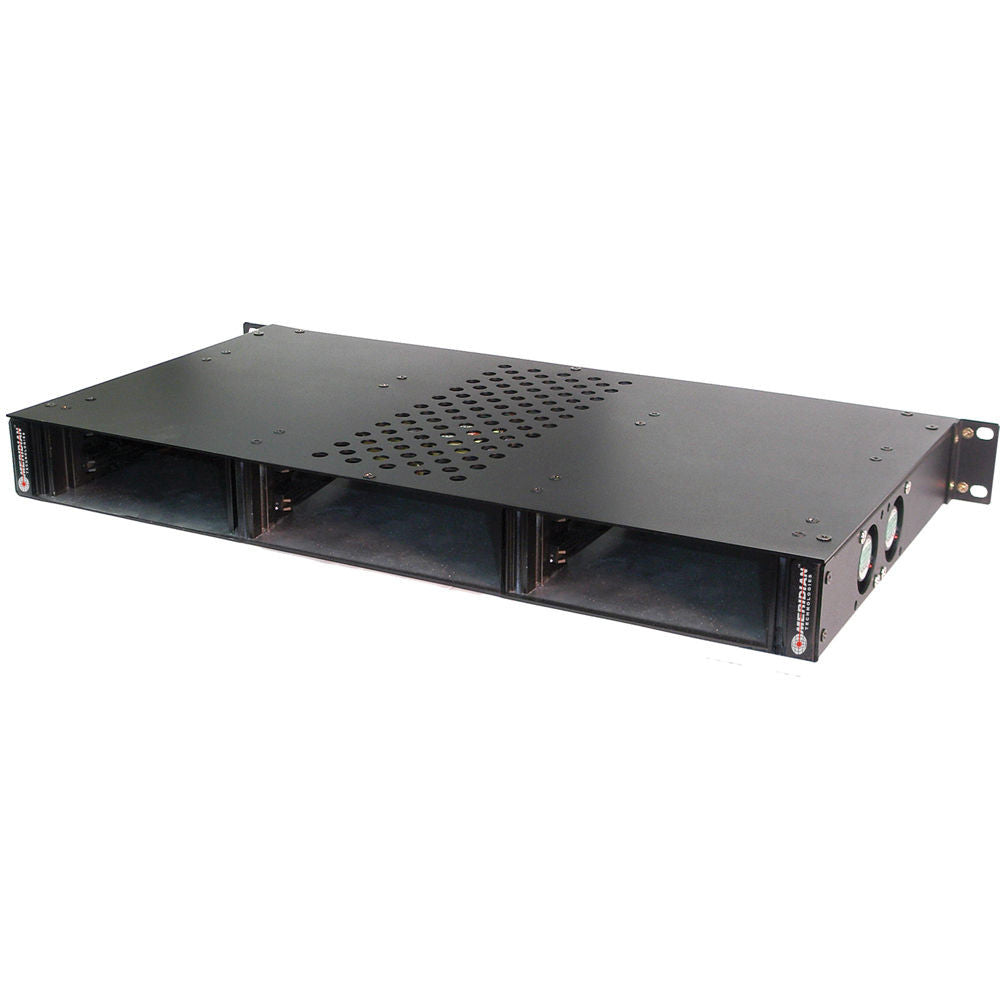

Up to 6 single-slot or 3 dual-slot cards can be accommodated in the chassis. The signal cards are all hot-swappable. Therefore, the cards can be inserted or removed without removing power to the chassis.
The unit is made of precision-extruded aluminum components and features a single internal power supply. Cards utilize a rear insertion procedure. Reversible rack mounting ears are provided for either front or rear access to cards. The chassis features built-in low-noise fans for enhanced cooling and reliability.
- Accepts 6 single-slot cards or 3 dual-slot cards
- Single internal power supply
- Hot-swappable cards
- Front panel power supply status indicator lights
- Reversible mounting ears
- Front or rear loading
- Built-in quiet, side-mounted fans for enhanced thermal management
- Standard EIA 19" 1U (1.75") chassis configuration
- Applications: Security and surveillance, campus educational networks, military communications, industrial process controls, video teleconferencing, intelligent transportation system, nuclear power plants, hospitals, schools, universities, airports, subways, highways, tunnels, bridges, audio video & broadcast
- Standard Power Cable
- Limited 10-Year Warranty
| Power | Single: Approximately 87 to 264 VAC Maximum: 60 W |
| Number of Power Supplies | 1 |
| Number of Modules | Slots Single: 6 Dual: 3 |
| Voltage | 110/220 VAC, 50/60 Hz |
| Connector | Standard IEC female, panel mount |
| MTBF | >260,000 hours @ Ground Fixed 95�F (35�C) per MIL217F |
| Indicators | LEDs Front panel mounted 2 green indicator lights 1x Green: Power 1 On 1x Green: Power 2 On |
| Operating Temperature | -40 to 165.2�F (-40 to + 74�C) |
| Storage Temperature | -58 to 185�F (-50 to +85�C) |
| Relative Humidity | 0 to 95% non-condensing |
| Dimensions (LxHxD) | 19.00 x 1.75 x 12.67" (483.00 x 45.00 x 322.00 mm) |
| Weight | 5.0 lb (2.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.0 lb |
| Box Dimensions (LxWxH) | 20.0 x 7.0 x 6.0" |
