Description
- 4-Channel S-Video
- Dual-Slot Card
- NTSC
- SpectraSmart Network Management Software
- Hot-Swappable
- RS-250C Compatible

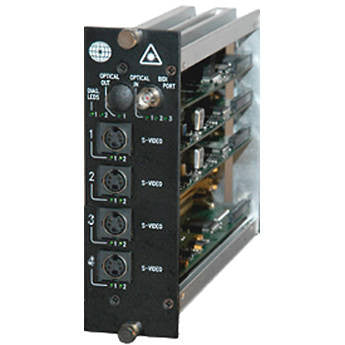

The Meridian Technologies DR-4S-3FC Dual Slot Fiber Optic S-Video Multiplexer is a reliable, cost effective digital video receiver that receives S-Video signals over fiber optic cable. This card has the ability to receive (4) signals using the SM (Singlemode) fiber optic connector.
This system can also receive 10-bit S-Video, NTSC signals over Multimode fiber as well. Its wide optical dynamic range and durable casing make it ideal for many environments, including CCTV support, campus lecture networks, as well as a variety of professional video applications.
Additional features include SpectraSmart network management software, and SMT (surface mount technology). The cards are completely hot-swappable and meet all EIA standards.
- 10-Bit digital video encoding.
- Receives (4) real-time video signals over (1) optical fiber.
- 7MHz video bandwidth.
- Meets RS-250C transmission specifications with complete NTSC compatibility.
- Wide optical dynamic range.
- Surface mount technology (SMT) for high reliability.
- SpectraSmart network management compatible.
- Local LED status indicators monitor critical system diagnostics.
- STTM, FC optical connector.
- Completely hot-swappable.
- Biased detector circuitry for stable optical output across a full temperature range.
- Can be rackmounted using optional rackmount cards.
- 1-Year Warranty
| Format | NTSC |
| Bandwidth | 5-6.8MHz 500 MB/s |
| Return Loss | >30dB |
| Inputs/Outputs | S-Video: 4-Pin Mini DIN (x4 Output) ST, FC: SM Optical (x1 Input) |
| Operating Temperature | - 29.2-165.2�F ( - 34-74�C) |
| Storage Temperature | - 67-185�F ( - 55-85�C) |
| Power Requirements | Supplied by Multiplexer |
| Power Consumption | 8W |
| Dimensions (LxWxH) | 6.2 x 4 x 1.7" (16 x 10 x 4.4cm) |
| Weight | 16oz (450 g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
