Description
- Up to 1600 x 1200 Resolution
- 720p and 1080i
- Fiber Optic
- DVI
- Real-Time Video

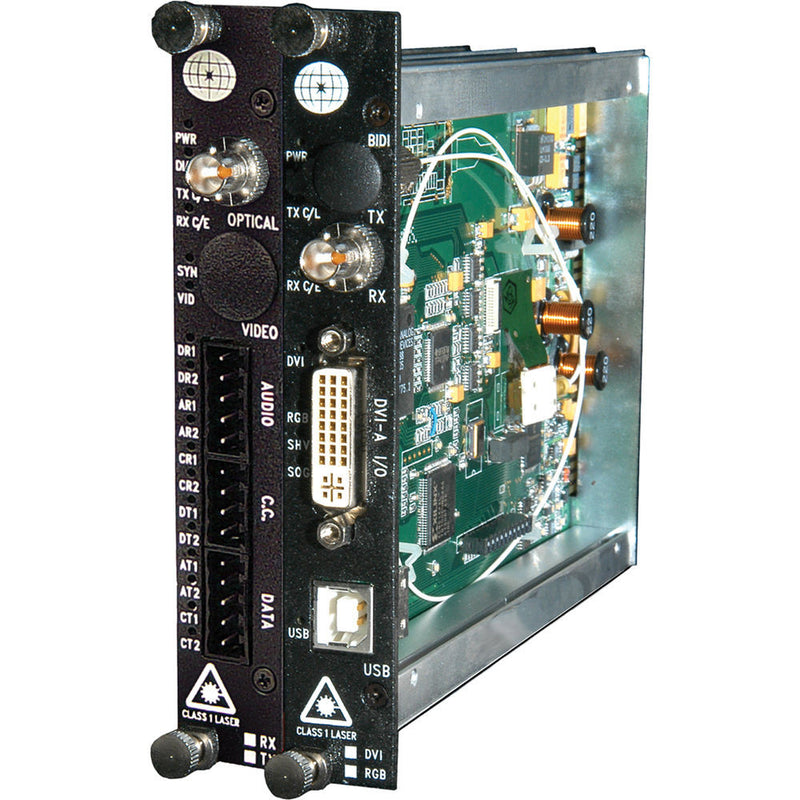

The Meridian Technologies DR-1DV2A-0 DigiView DVI Receiver is a module designed to send DVI signals over fiber optic cable. The module digitally encodes the data and can carry up to 2-channel of audio. The unit supports a wide variety of computer resolutions up to 1600 x 1200, as well as 720p and 1080i high definition. All in real-time, the video requires no adjustments, equalization or deskewing during setup. The module is compatible with SpectraSmart network management system.
- Digital reception of DVI over one multimode fiber.
- 2-channel 24-bit audio.
- Supports VGA, SVGA, XGA, SXGA, and UXGA formats and HDTV resolutions of 480p, 720p, and 1080i.
- H/V sync frequency range of 60-150Hz (vertical), 30-130kHz (horizontal).
- Uses all-digital processing for crystal clear signals and no color skewing.
- Real-time video for exceptional quality and resolution no video compression.
- Requires no adjustments, equalization or deskewing during setup.
- Data throughput in excess of 6 Gbps (uncompressed). Most systems have 1.25 Gbps throughput with significant compression.
- DDC (Data Display Channel) optional.
- Standard DVI-I video connector.
- USB interface for remote monitor adjustments.
- Wide optical dynamic range, eliminating the need for optical attenuators.
- Multimode laser based system.
- SpectraSmart network management compatible.
In the Box
Meridian Technologies DR-1DV2A-0 DigiView DVI Receiver
- 10-Year Warranty
| Channels | 1 Video Channel |
| Resolution | Computer (640 x 480) to (1600 x 1200) HDTV 480p, 720p, 1080i |
| Inputs/Outputs | DVI: DVI-I RGB: 15-Pin D-Sub Audio: Screw Terminals USB: USB 2.0 |
| LED Indicators | Power: Green Diagnostic: Green (OK), Red (Alarm) Tx carrier: Green (OK), Red (Alarm) Rx carrier: Green (OK), Red (Alarm) DVI Active: Green RGB Active: Green SHV (Sync H&V): Green SOG (Sync on Green): Green USB Active: Green (Rx-Data), Red (Tx-Data) Audio Present: Green (2) Audio Overload: Red (2) |
| Fiber Connector | Multimode |
| Storage Temperature | - 67-185�F ( - 55-85�C) |
| Operating Temperature | - 14-122�F ( - 10-50�C) |
| Power Requirements | Not Specified By Manufacturer |
| Power Consumption | 7W |
| Dimensions (WxHxD) | 1.6 x 5 x 6.3" (4 x 12.7 x 16cm) |
| Weight | 2 lbs (0.9kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
