Description
- Separates 1550 & 1310 Nm Wavelengths
- Meridian Digital & FM Series Compatible
- ST Single-mode Optical Connector
- Standalone Module Functionality
- Single-Slot Digital Module Design

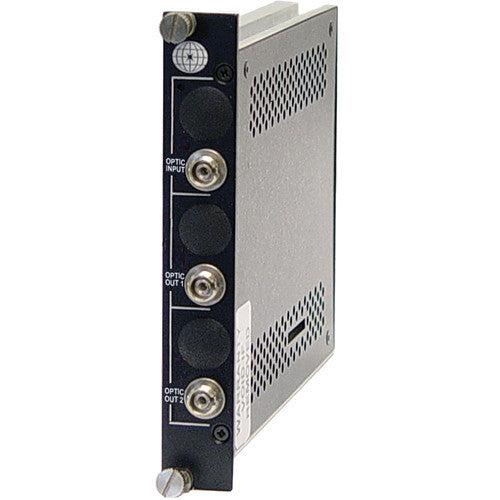

The Meridian Technologies 2-channel Optical Demultiplexer is an all-passive optical demultiplexer for single-mode systems. Capable of separating two individual optical wavelengths (1550 and 1310 nm), it provides optical multiplexing over a single fiber. It is compatible with all Meridian Digital and FM series products.
A ST single-mode connector, when utilized with an SR-500/S (standard configuration) or an SR-1000/S, allows the demultiplexer to be used as a standalone module. The demultiplexer has a single-slot digital module design and can be easily fitted in any Meridian desk chassis or 19" racking frame.
- Provides optical multiplexing over a single fiber by separating the 1310 nm and 1550 nm optical wavelengths
- Compatibility with all Meridian Digital and FM series products ensures that this demultiplexer can be used in a variety of setups
- ST single-mode connector
- Can be used as a standalone module when used in conjunction with an SR-500/S (standard configuration) or an SR-1000/S
- Easy installation in any Meridian desk chassis or in any 19" racking frame is certain with the single-slot module design
In the Box
Meridian Technologies 2-channel Optical Demultiplexer
- 1-Year Warranty
| Optical | Insertion Loss: 1.5dB Return Loss: >30dB Wavelength: 850/1300nm |
| Connectors | Optical: ST,FC Power: None - passive |
| Quality | MTBF: >170,000 hours @ Ground Fix 95�F (35�C) per MIL217F |
| Physical | Dimensions (WxHxD): 0.8 x 6.3 x 5" (20 x 160 x 127mm) Weight: 16 oz (150g) Slots: 1 |
| Operating Temperature | -29 - 165�F (-34 ~ +74�C) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.0" |
