Description
Merging Technologies 700341 Overview

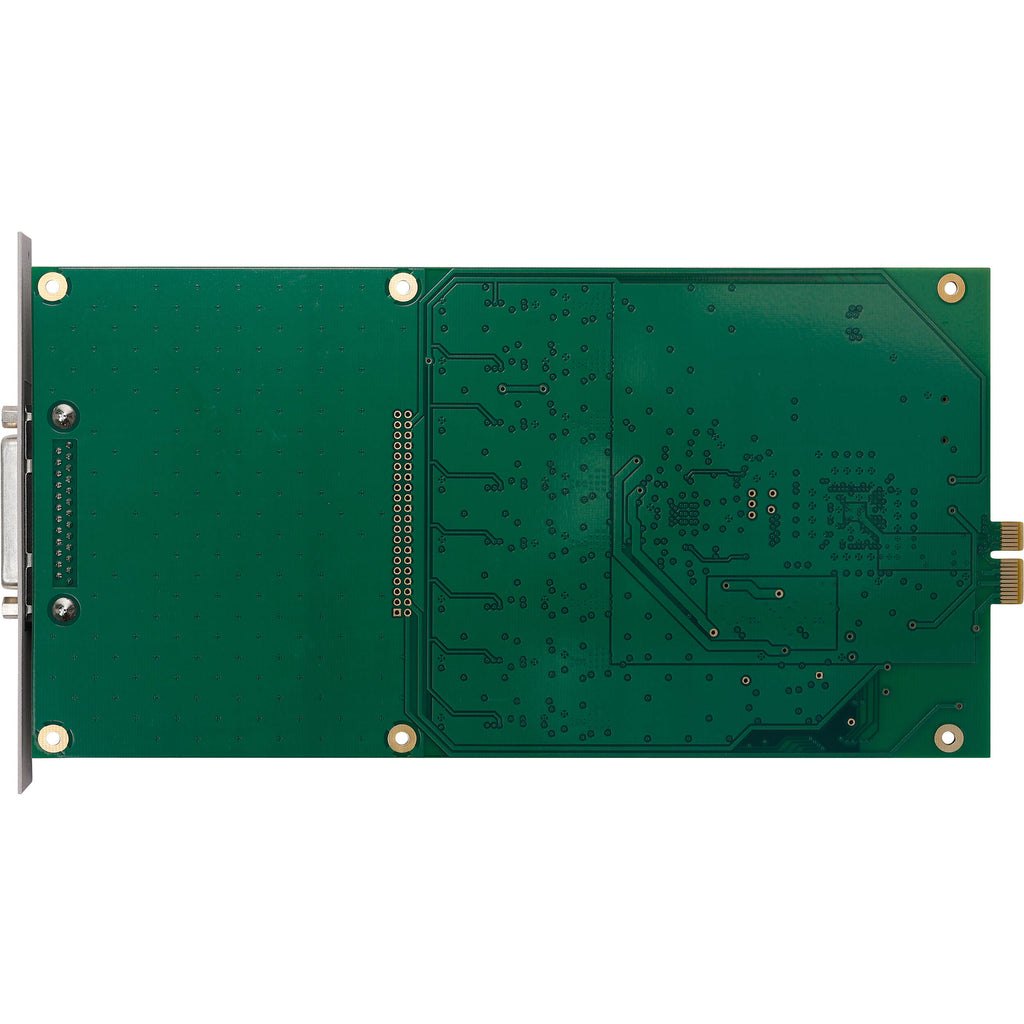

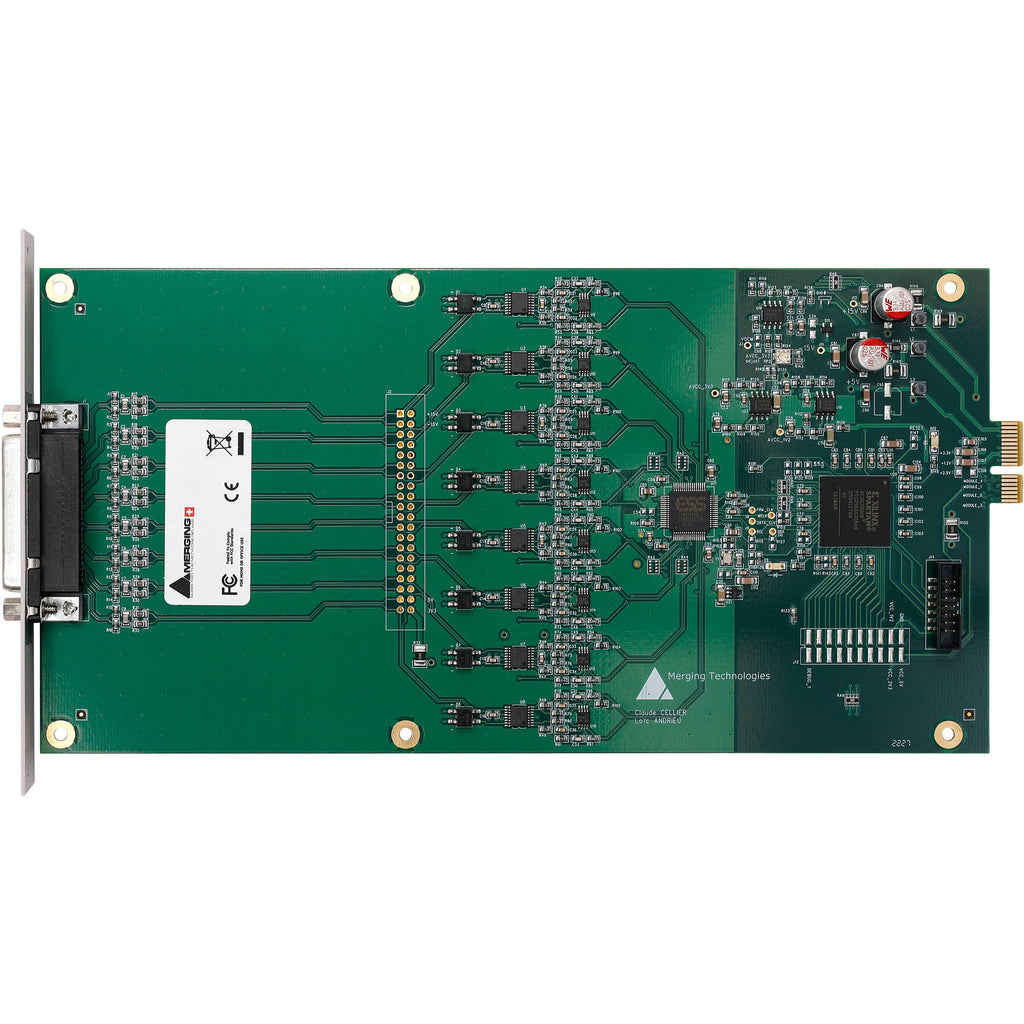

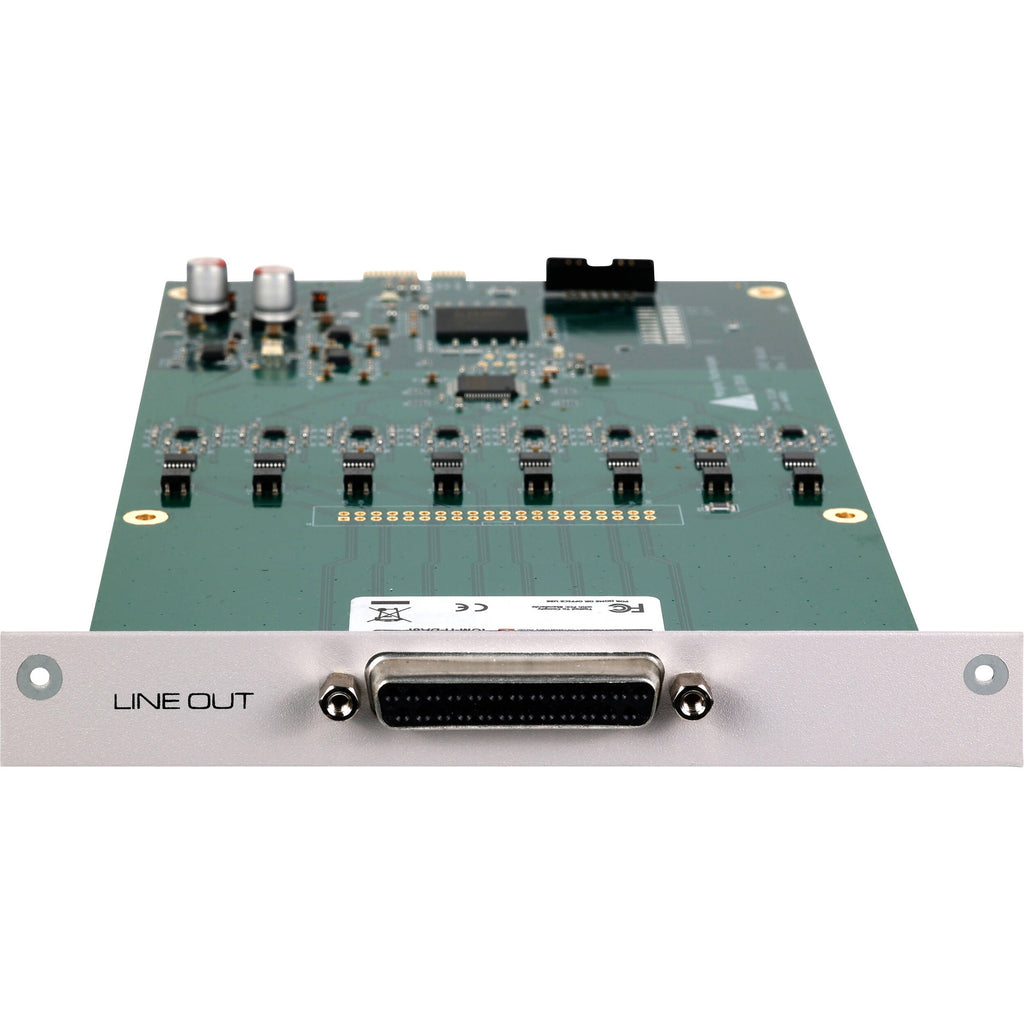

The Merging Technologies DA8 Standard D/A Output Card (192 kHz) allows you to customize your Horus or Hapi interface with 8 channels of analog line outputs. This second-generation DA8 card features a high-performance ESS ES9028PRO DA converter chip that delivers impressive specs with typical Dynamic Range of 127 dB A-weighted and THD+N in excess of -113 dB. The card also incorporates new refinements by adding local Low Phase Noise Oscillator circuitry to further improve the absolute transparency and stereo image of your analog signal, making it essentially void of both jitter and wander.
This DA8 Standard variant works at sampling rates up to 192 kHz, ensuring that you play back every sound with high accuracy.
- Standard variant: up to 192 kHz resolution
- 8-channel DA converter card
- ESS ES9028PRO DA converter chip
- 127 dB dynamic range
- -113 dB THD+N
- Output latency: 9 samples (Slow Roll Off), 35 samples (Sharp Roll Off)
- Local Low Phase Noise Oscillator circuitry
- Auto-mute circuitry for �no-pop� power cycling
- Digitally controlled output trims for line up procedures
In the Box
- Merging Technologies DA8 Standard D/A Output Card (192 kHz)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Merging Technologies 700341Specs
| Compatible Interfaces |
Merging Technologies MERGING+HORUS / MERGING+HAPI
|
| Analog Audio I/O |

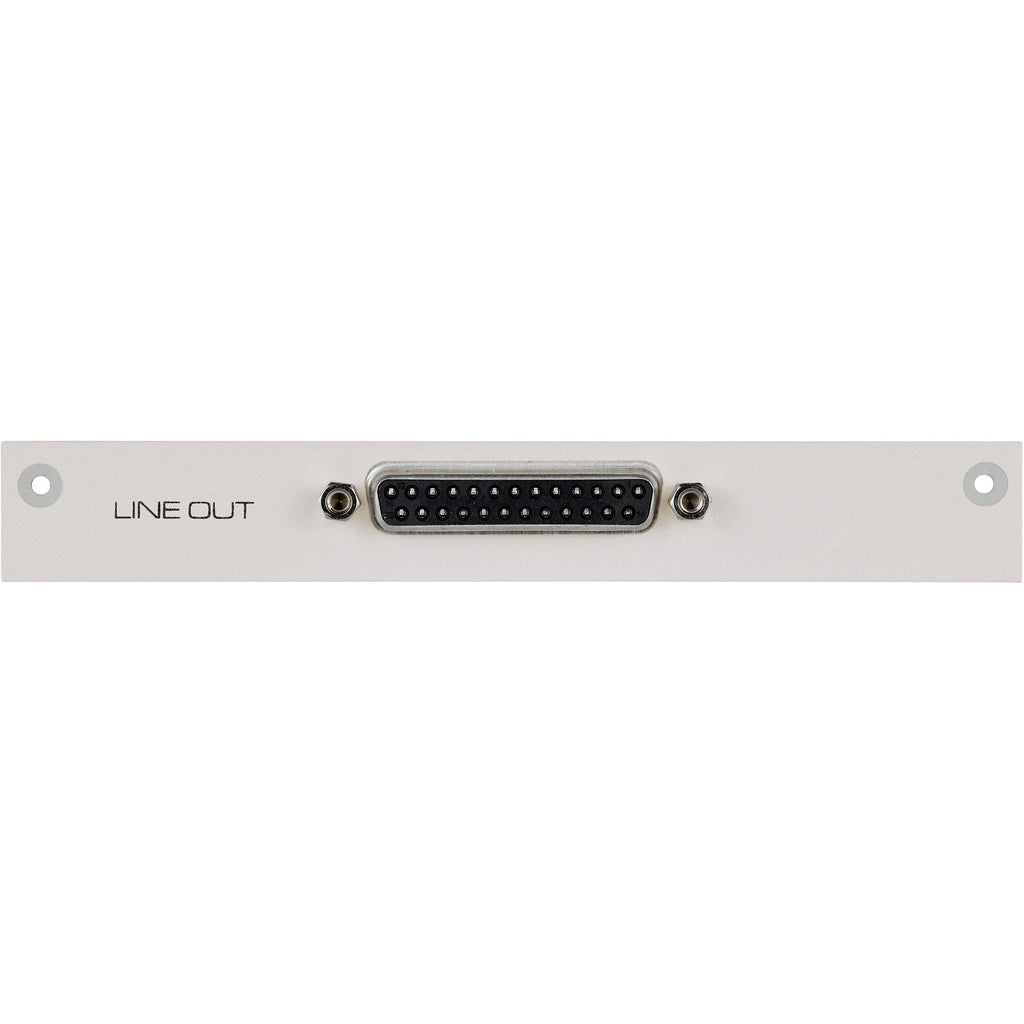

1x DB-25 25-Pin Balanced Line Output
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Frequency Response |
Line D/A Converters:
0 Hz to 20 kHz +0/-0.3 dB (at 48 kHz) 0 Hz to 20 kHz +0/-0.3 dB (at 2.8224 MHz (DSD)) 0 Hz to 50 kHz +0/-0.3 dB (at 2.8224 MHz (DSD)) |
| Maximum Output Level |
Line D/A Converters:
+25 dBu at 0 dBFS (Settings on +24 dBu) Line D/A Converters: +19 dBu at 0 dBFS (Settings on +18 dBu) |
| Impedance |
Line D/A Converters:
90 Ohms |
| Dynamic Range |
Line D/A Converters:
127 dB (A-weighted, Typ.) 122 dB (Flat 20 Hz to 20 kHz) |
| THD+N |
Line D/A Converters:
< -113 dB / 0.00022% (1 kHz at 0 dBFS) |
| Crosstalk |
Line D/A Converters:
< -140 dB (at 1 kHz, Typ.) < -115 dB (at 20 Hz to 20 KHz) |
| Sample Rates |
192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Latency |
D/A Conversion:
9 Samples 35 Samples |
| Package Weight |
0.55 lb
|
| Box Dimensions (LxWxH) |
11.9 x 7 x 1.5"
|
