Description
Merging Technologies 700339 Overview

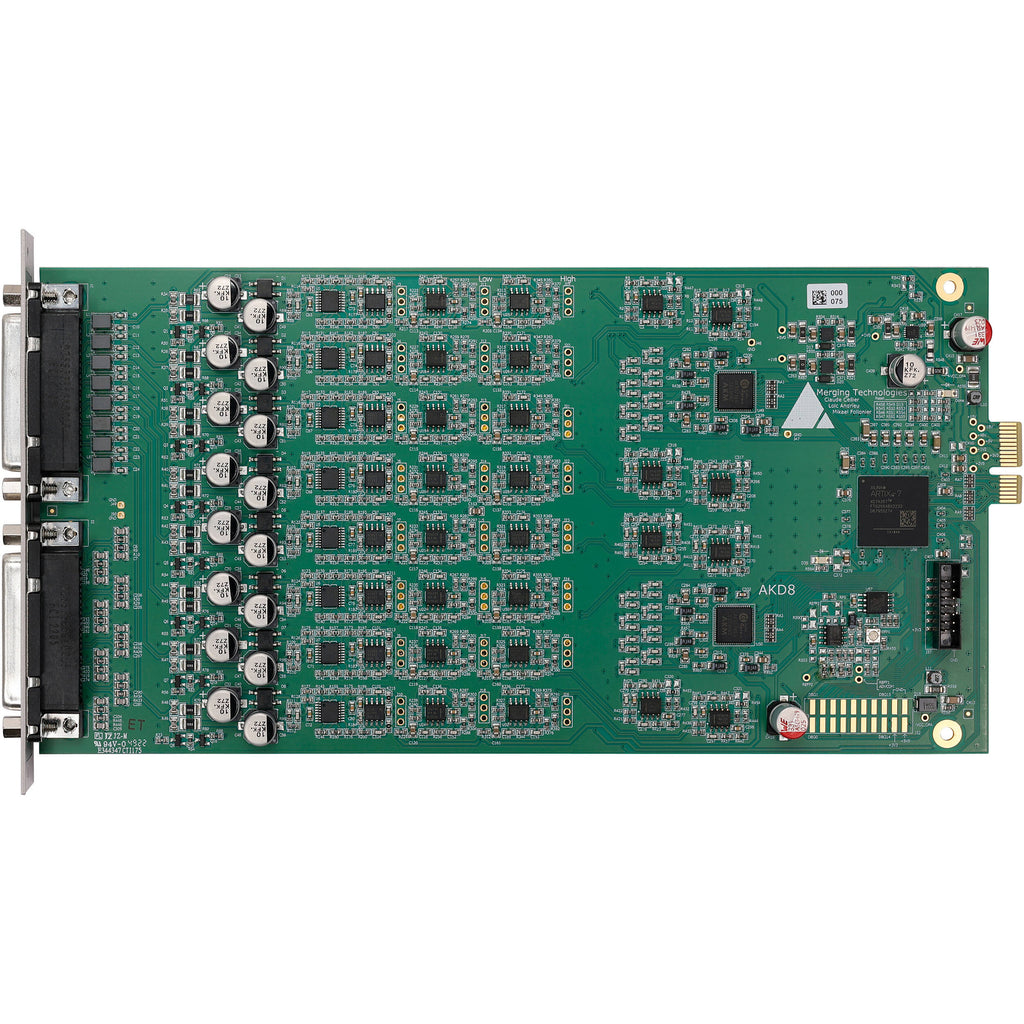

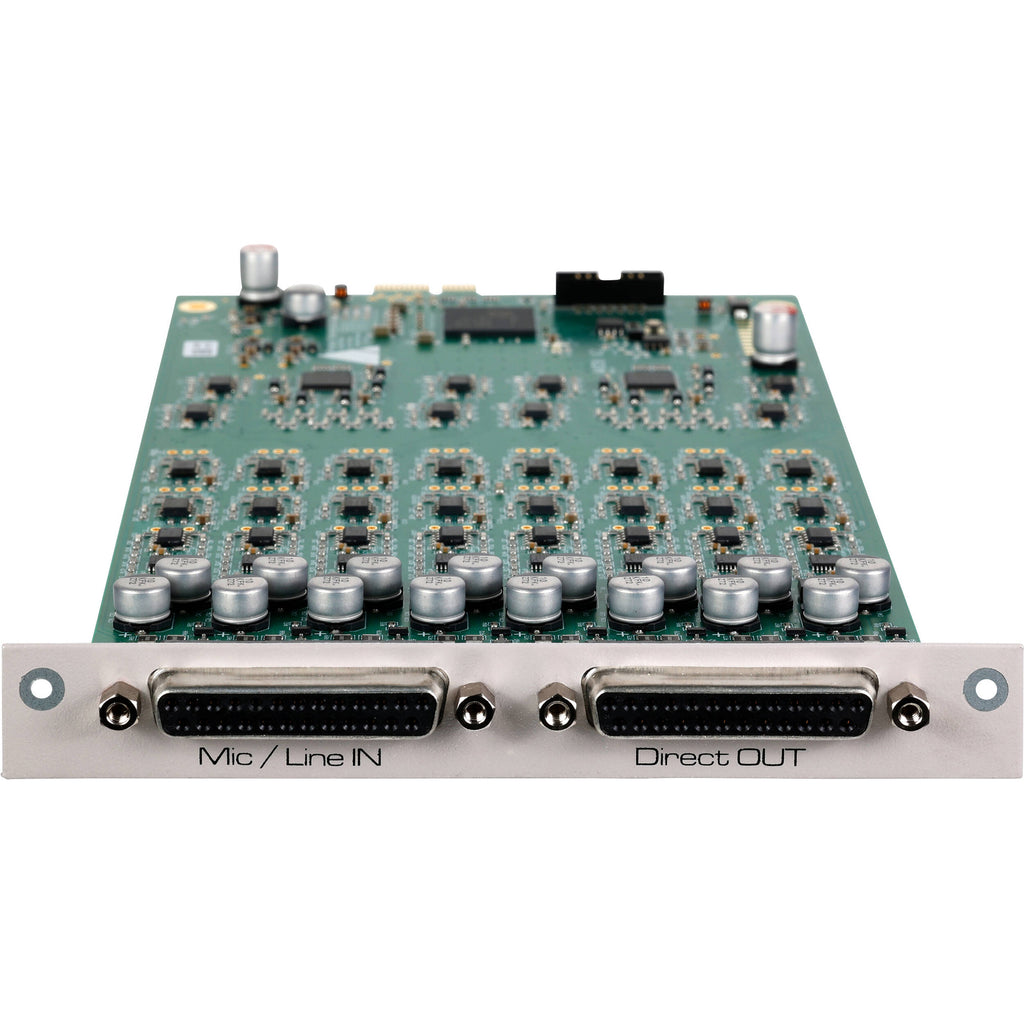

The Merging Technologies AKDG8D Standard AD Mic/Line Input Card (DXD/DSD) allows you to add 8 mic/line inputs to your Horus or Hapi interface. The remotely controlled card features eight, exceptionally transparent, Swiss-designed third-generation Dual Gain topology preamps inspired from the Anubis outstanding preamps that show zero tolerance for any compromise on the audio quality. The card also provides line-level, post mic-pre direct outputs on a second DB-25 connector.
This AKDG8D Standard variant works at sampling rates up to 192 kHz, ensuring that you capture every sound with high accuracy.
At a Glance
- Standard variant: up to 192 kHz resolution
- 8 exceptionally transparent, Swiss-designed preamplifiers
- Remote/Local switch to line level on a per-channel basis
- Completely accessible remotely for all parameter changes
- Phantom Power/Polarity Invert/Low Cut/Impedance�switchable per channel
- Allows build-in Mic splitting variants
- Removes the need for DI boxes
- Line-level post-mic-pre direct output
- Dynamic range of 136 dB (A-weighted, typ)
- Auto-mute circuitry for �no-pop� power cycling
UPC: 615104391468
In the Box
- Merging Technologies AKDG8D Standard AD Mic/Line Input Card (192 kHz)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Merging Technologies 700339Specs
General
| Compatible Interfaces |
Merging Technologies MERGING+HORUS / MERGING+HAPI
|
| Analog Audio I/O |

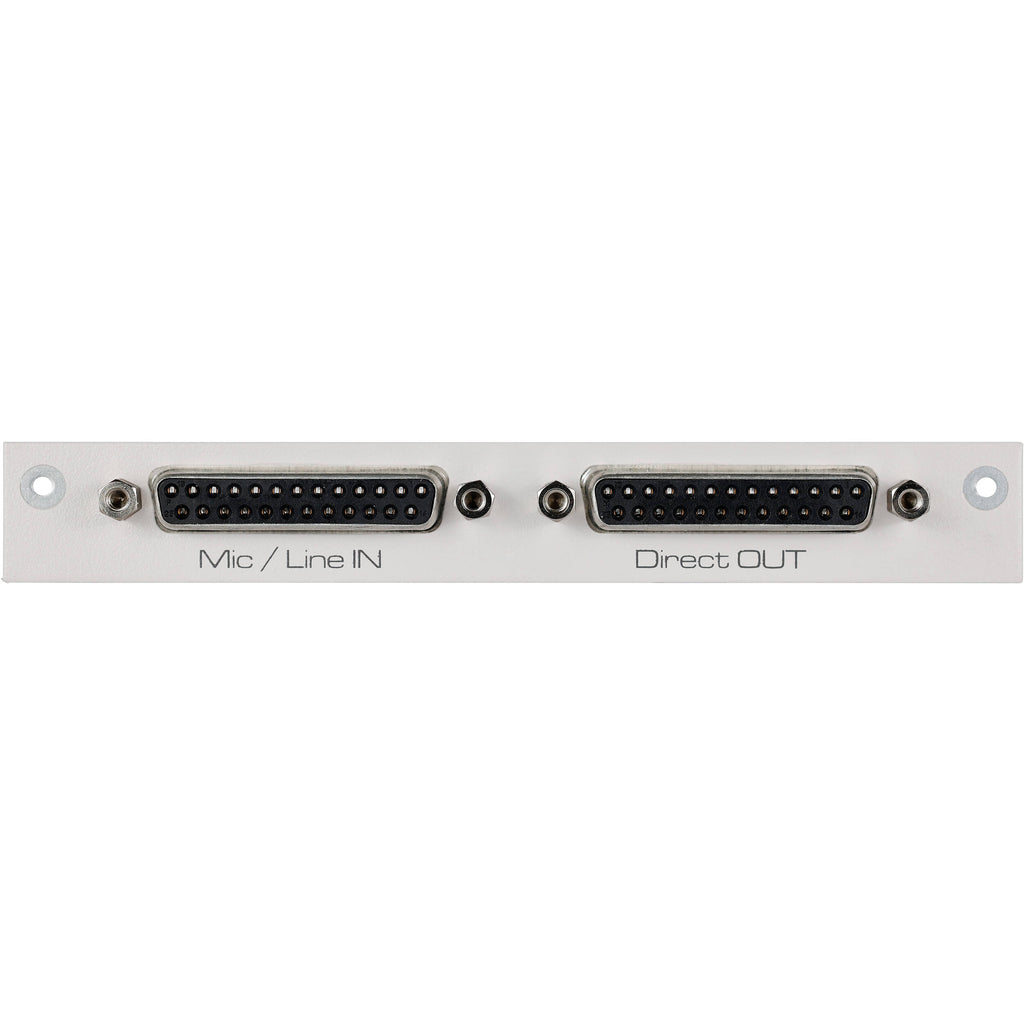

1x DB-25 25-Pin Balanced Mic/Line Input
1x DB-25 Balanced Line Output |
| Phantom Power |
48 V
|
| Digital Audio I/O |
No
|
| Host Connection |
No
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
Performance
| Frequency Response |
Line D/A Converters:
5.7 Hz to 20.5 kHz +0/-0.1 dB (at 44.1 kHz) 1.8 Hz to 21 kHz +0/-0.1 dB (at 44.1 kHz) 5.7 Hz to 43.9 kHz +0/-0.1 dB (at 96 kHz) 1.8 Hz to 45.4 kHz +0/-0.1 dB (at 96 kHz) 5.7 Hz to 42.1 kHz +0/-0.1 dB (at 192 kHz) 1.8 Hz to 64.7 kHz +0/0.1 dB (at 192 kHz) 5.7 Hz to 40 kHz +0/-0.1 dB (at 384 kHz) 1.8 Hz to 75 kHz +0/-0.1 dB (at 384 kHz) |
| Maximum Input Level |
Mic A/D Converters:
+24 dBu (Mic + Pad) +12 dBu (Mic) +0 dBu (Mic Boost) Line A/D Converters: +24 dBu for 0 dBFS |
| Maximum Output Level |
Line Outputs:
+24 dBu +12 dBu +0 dBu |
| Impedance |
Mic A/D Converters:
3 to 10.4 Kilohms Line A/D Converters: 10.4 Kilohms Line Outputs: < 100 Ohms |
| Dynamic Range |
Mic A/D Converters:
> 134 dB (Flat 20 Hz to 20 kHz) 136 dB (A-Weighted, Typ.) Line A/D Converters: > 136 dB (Flat 20 Hz to 20 kHz, Ref +24 dBu) Line A/D Converters: 138.5 dB (A-Weighted, Typ, Ref +24 dBu) |
| THD+N |
Mic A/D Converters:
-112 dB / 0.00025% (20 Hz to 20 kHz at -2 dBFS) Line A/D Converters: -106 dBA / 0.0005% (at -2 dBFS) Line A/D Converters: -109 dBA / 0.00035% (at -2 dBFS) Line A/D Converters: < -106 dB (20 Hz to 20 kHz at -2 dBFS) Line Outputs: -111 dB / 0.00028% (1 kHz at +10 dBu) |
| Crosstalk |
Mic A/D Converters:
< -125 dB (at 1 kHz) Mic A/D Converters: < -100 dB (at 20 Hz to 20 kHz) Line A/D Converters: -130 dB (at 1 kHz) Line A/D Converters: < -100 dB (at 20 Hz to 20 kHz) |
| EIN |
Mic/Line Inputs:
-128 dBu A-Weighted (150 Ohms Source Impedance) |
Digital Audio
| Sample Rates |
192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
Packaging Info
| Package Weight |
0.64 lb
|
| Box Dimensions (LxWxH) |
11.2 x 7.5 x 1.3"
|
