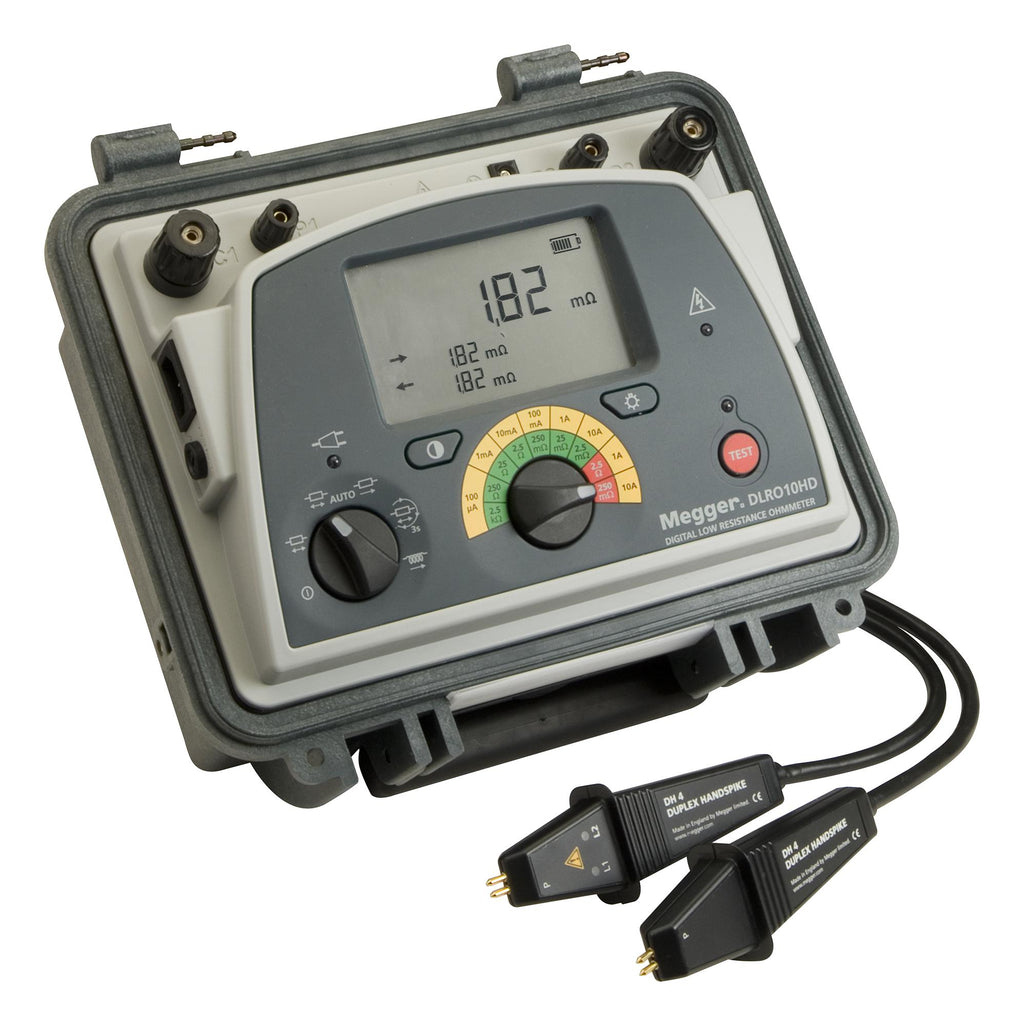

- Dual power 10A digital low resistance ohmmeter with DH4-C duplex handspike lead set
- Supplied with DH4-C two wire, four terminal duplex probe lead set
- High or low output power selection for condition diagnosis
- Equipped with interchangeable test lead terminations
- Delivers 10A into measurements up to 250 milliohms and 1A into measurements up to 2.5 ohms
- Tests last up to only 60 seconds, resulting in less time waiting to cool
- Powered by rechargeable battery or line power supply, allowing for continuous operation
- Simple rotary switch selection of five test modes, including auto start on connection
- Large, easy to read LCD display with backlight and contrast adjustment
- Heavy duty case with IP65 with lid closed, IP54 during battery operation
Contents
1 - DLRO10HD digital low resistance ohmmeter+DH4C probe, User guide CD, Warranty book.
Product details
| Wire Connection |
2-Wire |
| Resistance Measurement Range |
0ohm to 2.5Kohm |
| Resolution (ohm) |
0.1µohm |
| Test Current |
10A |
| Accuracy |
- |
| External Height |
315mm |
| External Width |
285mm |
| External Depth |
181mm |
| Weight |
6.7kg |
| Product Range |
- |
Other details
| Brand |
MEGGER |
| Part Number |
DLRO10HD |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
