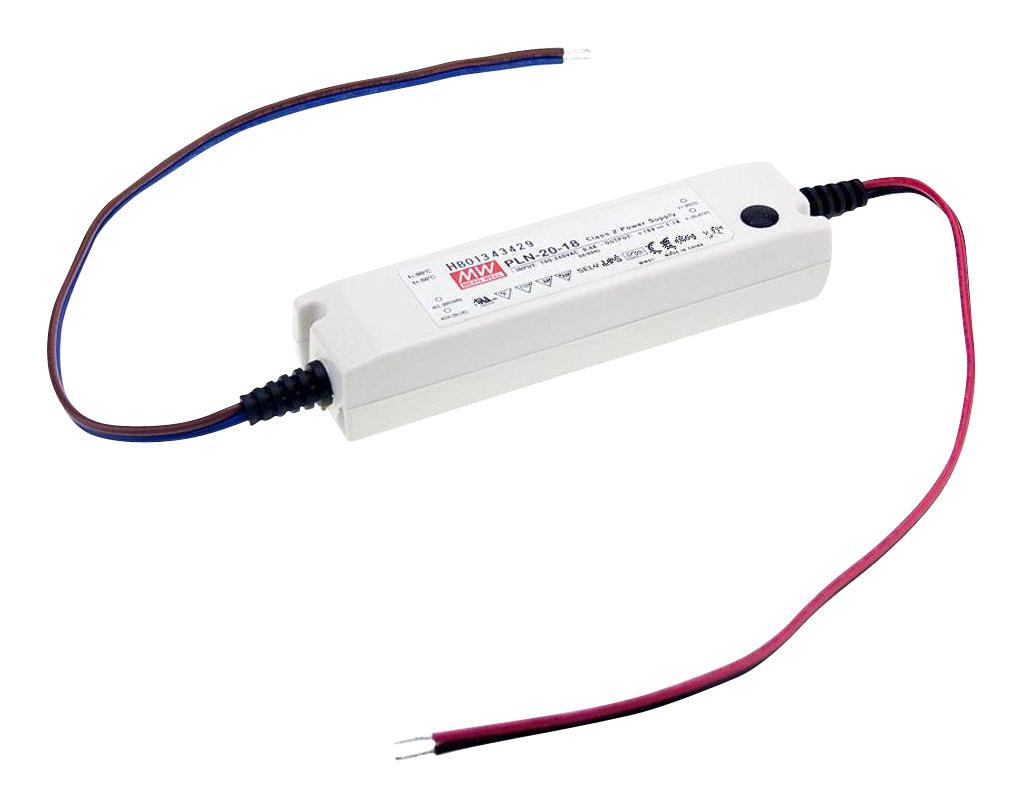

PLN-20-12 is a PLN-20 series single output LED power supply. Safety standards are IEC61347-1, IEC61347-2-13, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, UL8750, CSA C22.2 No. 250.0-08, EAC TP TC 004, GB19510.1, GB19510.14, IP64 approved.
- Universal AC input / full range (up to 277VAC), cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage / overtemperature
- Built-in constant current limiting circuit with adjustable OCP level, 2 years warranty
- Fully isolated plastic case, built-in active PFC function, suitable for dry /damp locations
- IP64 design for indoor or outdoor installations, small and compact size
- Class II power unit, no FG, 100% full load burn-in test, high reliability, low cost
- Output voltage rating is 12VDC, 19.2W rated output power
- Suitable for LED lighting and moving sign applications
- Input voltage range from 90 ~ 277VAC/127 ~ 392VDC, 80% typical efficiency
- Working temperature rating range from -30 to 60°C, dimension (L x W x H) is 148.5 x 38.5 x 28mm
Other details
| Brand |
MEAN WELL |
| Part Number |
PLN-20-12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
