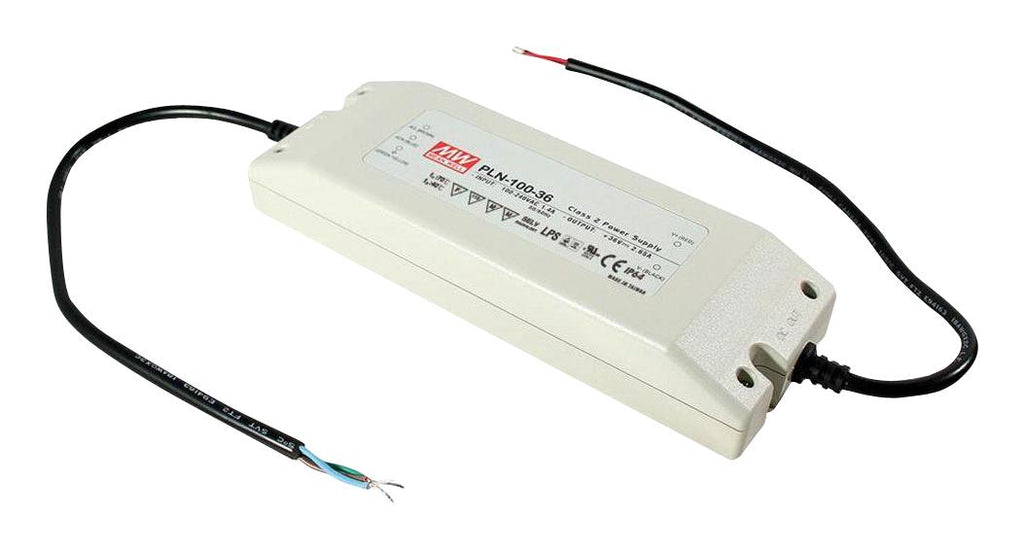

PLN-100-36 is a PLN-100 series single output switching power supply. Safety standards are UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No.223-M91 (except for 48V), CAN/CSA C22.2 No. 250.13-12, EAC TP TC 004, GB19510.1, GB19510.14, IP64 approved, design refer to UL60950.
- Universal AC input / full range (up to 295VAC), cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage / overtemperature
- Built-in active PFC function, fully isolated plastic case with IP64 level
- Pass LPS, class 2 power unit, 100% full load burn-in test
- High reliability, suitable for LED lighting and moving sign applications
- Suitable for dry/damp locations, compliance to worldwide safety regulations for lighting
- Output voltage rating is 36VDC, 95.4W rated output power
- Input voltage range from 90 ~ 295VAC/127 ~ 417VDC, 88% typical efficiency
- Working temperature rating range from -30 ~ +50�
- Dimension (L x W x H) is 200 x 70.5 x 35mm
Product details
| Power Supply Applications:
ITE & LED Lighting
|
| Output Power Max:
95.4W
|
| Output Voltage Max:
36V
|
| Output Current:
2.65A
|
| LED Driver Mode:
Constant Current, Constant Voltage
|
| Input Voltage Min:
90VAC
|
| Input Voltage Max:
295VAC
|
| Product Range:
PLN-100 Series
|
Other details
| Brand |
MEAN WELL |
| Part Number |
PLN-100-36 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
