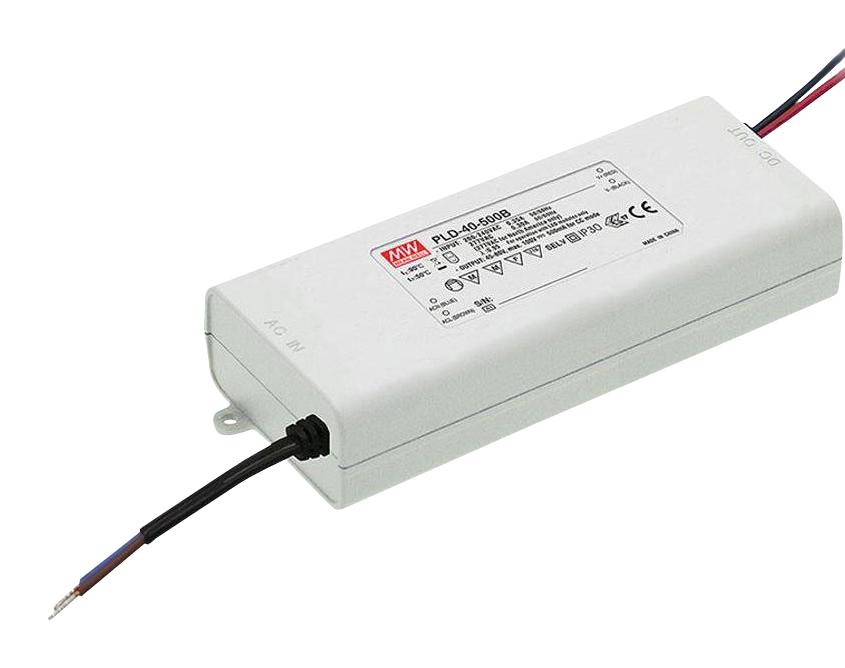

PLD-40-700B is a PLD-40 series single output LED power supply. Safety standards are ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, BIS IS15885, EAC TP TC 004, IP42 approved.
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature, cooling by free air convection
- Fully isolated plastic case, IP42 design
- Class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost
- High reliability, 3 years warranty
- 700mA rated output current, 39.9W rated output power, 87% typical efficiency
- Working temperature rating range from -30 to +50°C
- Dimension (L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand |
MEAN WELL |
| Part Number |
PLD-40-700B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
