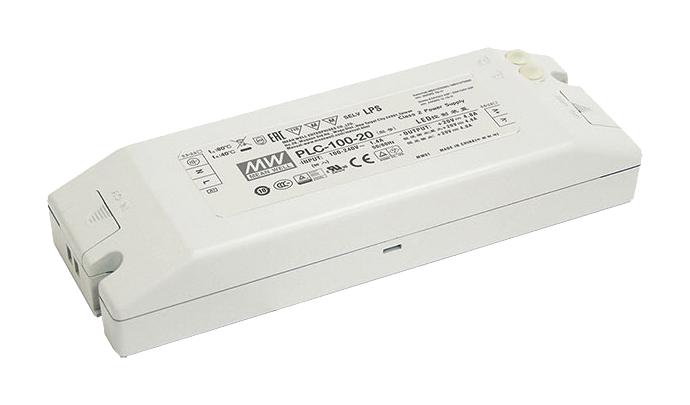

PLC-100-36 is a PLC-100 series single output switching power supply. Safety standards are UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved.
- Universal AC input / full range, cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage/ overtemperature
- Built-in active PFC function, class 2 power unit, pass LPS
- 100% full load burn-in test, high reliability, 2 years warranty
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 36VDC output voltage, 95.4W rated output power, 88% typical efficiency
- Input voltage rating is 90 ~ 264VAC/127 ~ 370VDC
- Working temperature range from -30 to +50°C
- Dimension (L x W x H) is 200.5 x 69.5 x 35mm
Other details
| Brand |
MEAN WELL |
| Part Number |
PLC-100-36 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
