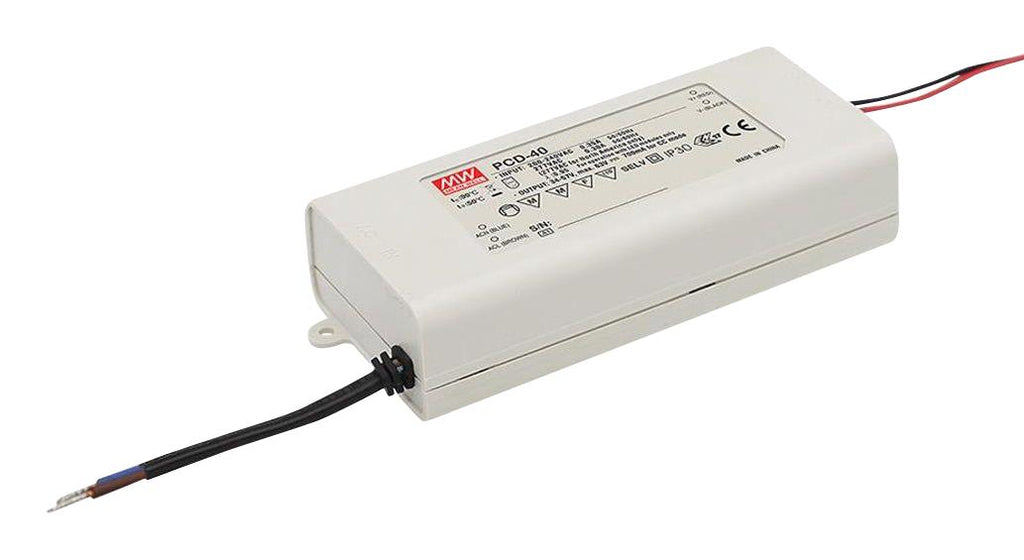

PCD-40-350B is a PCD-40 series single output AC dimmable LED power supply. Safety standards are ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, IP42 approved.
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 350mA output rated current, 70 ~ 108V operating output voltage range
- 37.8W output rated power, 87% typical efficiency
- Working temperature range from -30 to +50°C, dimension(L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand |
MEAN WELL |
| Part Number |
PCD-40-350B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
