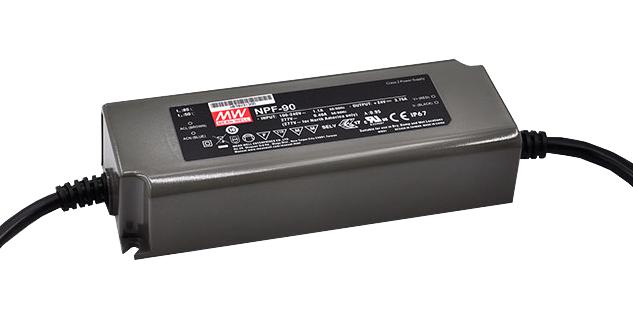

NPF-90-48 is a NPF-90 series is a AC/DC LED driver featuring the dual modes constant voltage and constant current output. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C ~ +85°C case temperature under free air convection. The entire series is rated with lP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. Typical applications are LED panel lighting, LED downlight, LED decorative lighting, LED tunnel lighting, moving sign.
- Constant voltage + constant current mode output, single output
- Plastic housing with class ll design
- Built-in active PFC function, class 2 power unit
- No load power consumption is <0.15W
- lP67 rating for indoor or outdoor installations
- Typical lifetime is >50000hours, 5 years warranty
- 90W output power
- Output voltage is 48V, output current is 1.88A
- Input voltage is 110/230V universal input, 90 to 305V
- Dimension is 63mm width x 37.5mm height x 171mm depth
Other details
| Brand |
MEAN WELL |
| Part Number |
NPF-90-48 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
