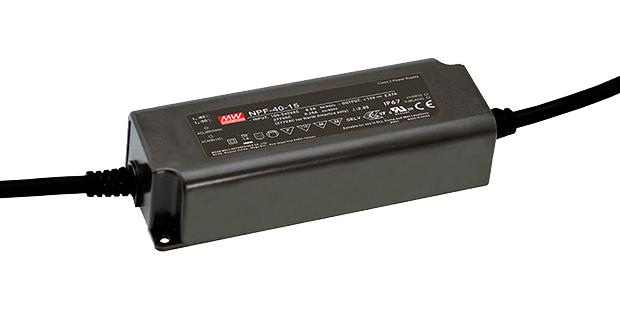

NPF-40-36 is a NPF-40 series is a AC/DC LED driver featuring the dual modes constant voltage and constant current output. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40� ~ +85� case temperature under free air convection. The entire series is rated with lP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. Typical applications are LED panel lighting, LED downlight, LED decorative lighting, LED tunnel lighting, moving sign, type �HL� for use in Class l, Division 2 hazardous (classified) location.
- Constant voltage + constant current mode output, single output
- Plastic housing with class ll design
- Built-in active PFC function, class 2 power unit
- No load power consumption is 0.15W
- lP67 rating for indoor or outdoor installations
- Typical lifetime is 50000hours, 5 years warranty
- 40W output power
- Output voltage is 36V, output current is 1.12A
- Input voltage is 110/230V universal input, 90 to 305V
- Dimension is 53mm width x 35mm height x 150mm depth
Product details
| Power Supply Applications:
Household & LED Lighting
|
| Output Power Max:
40.32W
|
| Output Voltage Max:
36V
|
| Output Current:
1.12A
|
| LED Driver Mode:
Constant Current, Constant Voltage
|
| Input Voltage Min:
90VAC
|
| Input Voltage Max:
305VAC
|
| Product Range:
NPF-40 Series
|
Other details
| Brand |
MEAN WELL |
| Part Number |
NPF-40-36 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
