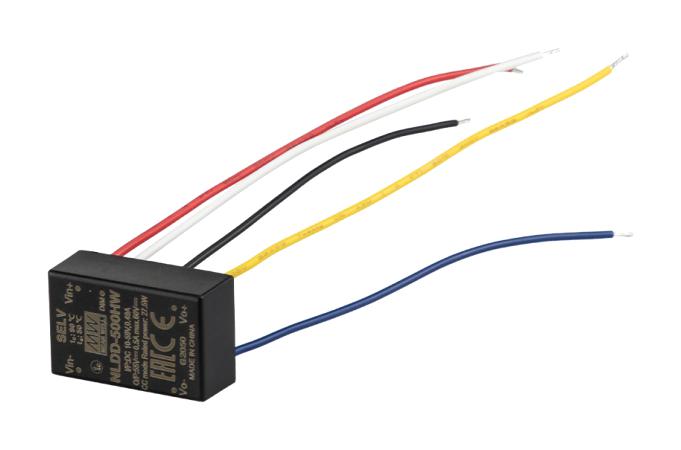

NLDD-500HW is a NLDD-H series DC/DC step-down LED driver featuring constant current output. With a high efficiency up to 96%, The 94V-0 flame retardant plastic case the fully-potted silicone to enhance heat dissipation allows this series to fit for class III or DC bus lighting application. Typical applications are DC battery source lighting, portable lighting, commercial lighting, DC 48V track lighting, DC 24V landscape lighting, for class III application(SELV).
- Wide input voltage is 10 ~ 56VDC (59VDC maximum)
- Wide output LED forward voltage from 6 to 52VDC
- High efficiency up to 96%, built-in PWM and remote ON/OFF control
- Comply with BS EN/EN61347 and BS EN/EN55015 regulation
- Protections: short circuit /overtemperature, cooling by free air convection
- Fully encapsulated and compact site, suitable for driving illumination LED
- 60W output power
- 52V output voltage, 0.5A output current
- ON/OFF control signal, PWM dimming technology
- Dimension is 20.5mm width x 12.5mm height x 32.1mm depth
Product details
| Power Supply Applications:
LED Lighting
|
| Product Range:
NLDD-H Series
|
| Output Power Max:
60W
|
| Output Voltage Max:
52VDC
|
| Output Current:
500mA
|
| Dimming Control Type:
PWM
|
| DC / DC Converter Mounting:
Chassis
|
| DC / DC Converter Output Type:
Adjustable
|
| Input Voltage Min:
10VDC
|
| Input Voltage Max:
56VDC
|
Other details
| Brand |
MEAN WELL |
| Part Number |
NLDD-500HW |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
