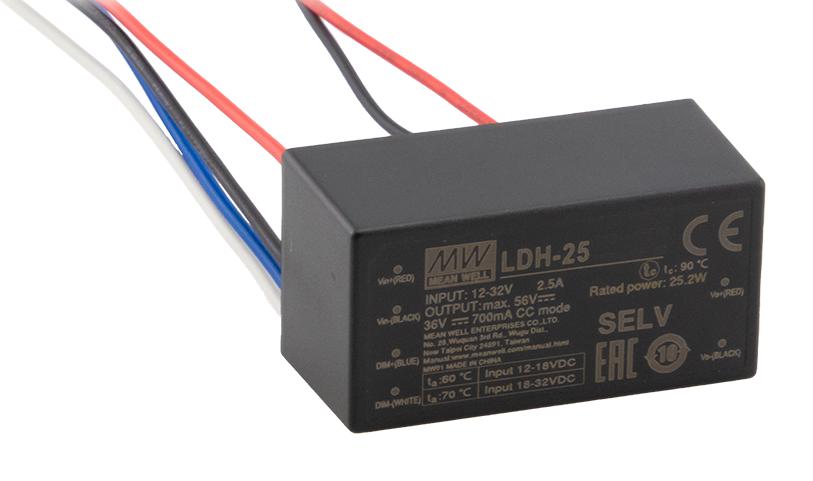

LDH-25-500W is a LDH-25 series DC/DC step-up LED driver featuring constant current output. With a high efficiency up to 95.5%, The 94V-0 flame retardant plastic case the fully-potted silicone enhance the heat dissipation allows this series to fit solar LED street light. LDH-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for DC source LED lighting system. Typical applications are DC battery source lighting, portable lighting, LED solar street lighting, LED greenhouse lighting, LED low-bay lighting.
- Wide DC input voltage operation 9.5~32V
- Wide output LED forward voltage up to 84VDC
- High efficiency up to 95.5%, 2 in 1dimming (0-10V, PWM)
- Protections: short circuit / overvoltage
- Cooling by free air convection, fully encapsulated
- 3 years warranty
- 25W output power, 50V output voltage
- 0.5A output current, 9.5 - 32V input voltage
- 0-10V PWM dimming technology
- Dimension is 27.2mm width x 24mm height x 52.4mm depth
Product details
| Power Supply Applications:
LED Lighting
|
| Product Range:
LDH-25 Series
|
| Output Power Max:
25W
|
| Output Voltage Max:
50VDC
|
| Output Current:
500mA
|
| Dimming Control Type:
Analogue, PWM
|
| DC / DC Converter Mounting:
Chassis
|
| DC / DC Converter Output Type:
Adjustable
|
| Input Voltage Min:
9.5VDC
|
| Input Voltage Max:
32VDC
|
Other details
| Brand |
MEAN WELL |
| Part Number |
LDH-25-500W |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
