| ₹ 240.14 includes GST and import duties. | |
| B2B customers can avail ₹ 36.62 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The MAX8892EXK+T is a high PSRR, low dropout, 150mA linear regulator in 5 pin SC70 package. This LDO linear regulator is designed to deliver up to 150mA continuous output current. This regulator achieves a low 120mV dropout for 120mA load current. IC's output voltage can be adjusted with an external divider. It maintains very low ground current of 40µA. It require only 1µF (typ) of output capacitance for stability with any load. When disabled, current consumption drops to below 1µA. It is used in cellular and cordless phones, PDA and palmtop computers, base stations, Bluetooth portable radios and accessories, wireless LANs, digital cameras, personal stereos and portable and battery-powered equipment.
- Input voltage range from 2V to 6V
- Operating temperature range from -40°C to 85°C
- 65dB PSRR at 10KHz
- Stable with 1µF ceramic capacitor for any load
- Only need input and output capacitors
- Adjustable output voltage
- Low 40µA ground current, output noise voltage of 230µV at f = 100Hz to 100KHz, ILOAD = 10mA
- Excellent load/line transient
- Overcurrent and thermal protection, thermal shutdown is 160°C
- Maximum shutdown supply current of 1µA at TA=+25?C
Applications
Power Management, Portable Devices, Consumer Electronics
- :
- 6V
- :
- -
- :
- -40°C
- :
- 150mA
- :
- 4.5V
- :
- 85°C
- :
- 5Pins
- :
- 1.225V
- :
- Adjustable
- :
- 2V
- :
- -
- :
- -
- :
- SC-70
- :
- Cut Tape
- :
- -
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 6V |
| Fixed Output Voltage Nom. | - |
| Operating Temperature Min | -40°C |
| Output Current | 150mA |
| Adjustable Output Voltage Max | 4.5V |
| Operating Temperature Max | 85°C |
| No. of Pins | 5Pins |
| Adjustable Output Voltage Min | 1.225V |
| Output Type | Adjustable |
| Input Voltage Min | 2V |
| Product Range | - |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | SC-70 |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX8892EXK+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

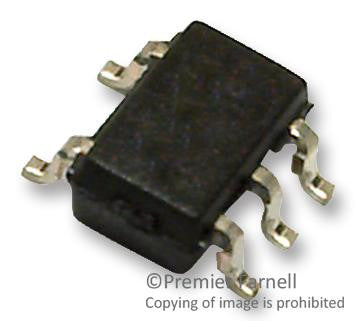

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 235.34 |
| 3-5 | ₹ 232.94 |
| 5-10 | ₹ 228.13 |
| 10+ | ₹ 223.33 |
Bulk discount will be automatically applied during checkout based on quantity.
