Description

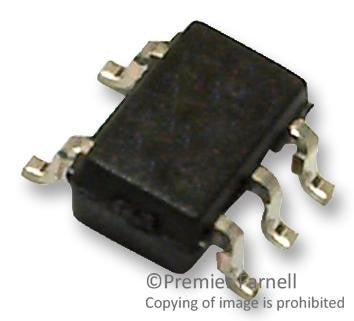

The MAX8891EXK18+T is a high PSRR, low dropout, 150mA linear regulator in 5 pin SC-70 package. This LDO is designed to deliver up to 150mA continuous output current and achieve a low 120mV dropout for 120mA load current. It only requires an input/output capacitor, hence achieving smallest PCB area. It is preset to a variety of voltages in the 1.5V to 4.5V range. Designed with a P-channel MOSFET series pass transistor and maintain very low ground current of 40µA. The regulator is designed and optimized to work with low-value, low cost ceramic capacitors. It require only 1µF (typ) of output capacitance for stability with any load. When disabled, current consumption drops to below 1µA. It is used in cellular and cordless telephones, PDA and palmtop computers, base stations Bluetooth portable radios and accessories, wireless LANs, digital cameras and personal stereos.
- Input voltage range from 2V to 6V
- Operating temperature range from -40°C to 85°C
- 65dB PSRR at 10KHz
- Stable with 1µF ceramic capacitor for any load
- Only need input and output capacitors
- Output voltage range is 1.8V
- Low 40µA ground current, output noise voltage of 230µV at f = 100Hz to 100KHz, ILOAD = 10mA
- Excellent load/line transient
- Overcurrent and thermal protection, thermal shutdown is 160°C
- Maximum shutdown supply current of 1µA at TA=+25?C
Applications
Power Management, Portable Devices, Consumer Electronics
- :
- 6V
- :
- 1.8V
- :
- -40°C
- :
- 150mA
- :
- -
- :
- 85°C
- :
- 5Pins
- :
- -
- :
- Fixed
- :
- 2V
- :
- 1.8V 150mA LDO Voltage Regulators
- :
- -
- :
- SC-70
- :
- Cut Tape
- :
- -
- :
- MSL 1 - Unlimited
Product details
| Input Voltage Max | 6V |
| Fixed Output Voltage Nom. | 1.8V |
| Operating Temperature Min | -40°C |
| Output Current | 150mA |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 85°C |
| No. of Pins | 5Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 2V |
| Product Range | 1.8V 150mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | SC-70 |
| Packaging | Cut Tape |
| Dropout Voltage Vdo | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX8891EXK18+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
