Description

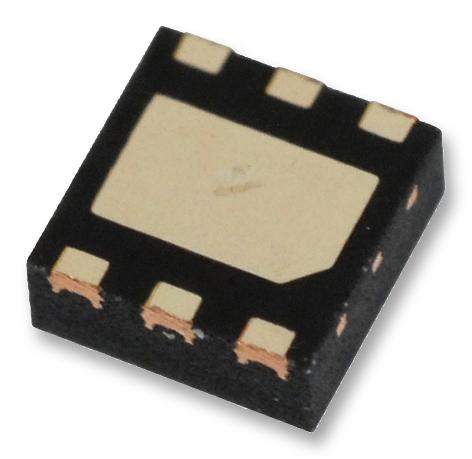

This is a Fixed LDO Voltage Regulator, 2 V to 6 V, 120 mV Dropout, 3.3 V/120 mA out, µDFN-6 product from MAXIM INTEGRATED PRODUCTS with the model number MAX8840ELT33+T
Product details
| Output Type | Fixed |
| Input Voltage Min | 2V |
| Input Voltage Max | 6V |
| Fixed Output Voltage Nom. | 3.3V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 120mA |
| Dropout Voltage Vdo | 120mV |
| LDO Regulator Case Style | µDFN |
| No. of Pins | 6Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | 3.3V 120mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX8840ELT33+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
